fixed concrete batching plant
Capacity: 25m ³/h ~ 240m ³/h | Type: belt or hopper feeding | Cost: $18,000-$350,000
fixed concrete batching plant For Sale
As a trusted leader in concrete machinery, we delivers Stationary Concrete Batching Plants that set the industry standard for durability, precision, and operational efficiency. Designed specifically for long-term infrastructure projects and high-volume industrial production, our plants are the preferred choice for precast factories, commercial ready-mix suppliers, and mega-projects like dams, airports, and bridges.
We combines robust structural integrity with advanced automation. Our HZS Series (ranging from 25m³/h to 240m³/h) features high-performance Twin Shaft Mixers and precise weighing systems to ensure consistent, high-grade concrete output. Whether you require a compact Skip Hopper model or a high-capacity Belt Conveyor system, we provides fully customized solutions tailored to your site layout and production goals, helping you maximize resources and achieve a superior Return on Investment (ROI).
fixed concrete batching plant Price List
High-efficiency HZS series stationary plants ranging from 25m³/h to 240m³/h. Designed for large infrastructure projects, precast factories, and commercial ready-mix supply with Belt or Skip Hopper feeding systems.
| Best Products | Production Capacity | EXW Price |
|---|---|---|
| HZS25 ~ HZS75 | 25 m³/h ~ 75 m³/h | $18,000 ~ $42,000 |
| HZS60 ~ HZS120 | 60 m³/h ~ 120 m³/h | $45,000 ~ $115,000 |
| HZS150 ~ HZS240 | 150 m³/h ~ 240 m³/h | $130,000 ~ $350,000+ |
The price is for reference only. Please get in touch with us for the latest quotation.
Stationary Concrete Batching Plant Price List
High-efficiency HZS series stationary plants ranging from 25m³/h to 240m³/h. Designed for large infrastructure projects, precast factories, and commercial ready-mix supply with Belt or Skip Hopper feeding systems.
| Best Products | Production Capacity | EXW Price |
|---|---|---|
| HZS25 ~ HZS75 | 25 m³/h ~ 75 m³/h | $18,000 ~ $42,000 |
| HZS60 ~ HZS120 | 60 m³/h ~ 120 m³/h | $45,000 ~ $115,000 |
| HZS150 ~ HZS240 | 150 m³/h ~ 240 m³/h | $130,000 ~ $350,000+ |
The price is for reference only. Please get in touch with us for the latest quotation.
fixed concrete batching plant Types
We understand that every project has unique requirements. We offer flexible configurations designed to match your specific site conditions, production capacity, and budget.
(1) By Feeding System
Skip Hopper Stationary Concrete Batching Plant (Bucket Type)
| HZS25 – HZS75 | Designed for compact sites and cost-effective operations. The bucket lifting system occupies less ground area and requires simpler maintenance. Ideal for capacities from 25m³/h to 75m³/h.
- Small Footprint: Requires 1/2 to 1/3 less land area compared to belt types.
- Cost-Effective: Lower initial investment and simpler foundation requirements.
- Easy Maintenance: Simple wire rope hoisting mechanism ensures durability and easy repair.
Belt Conveyor Stationary Concrete Batching Plant
| HZS60 – HZS240 | Engineered for high-efficiency, large-scale production. The belt system ensures continuous aggregate feeding with high stability. Perfect for heavy-duty projects requiring 60m³/h to 240m³/h.
- High Efficiency: Continuous feeding significantly shortens the batch cycle time.
- Large Capacity: Ideal for high-volume demands (up to 240m³/h) and long-distance conveying.
- All-Weather Operation: Enclosed cover design protects aggregates from rain and dust.
(2) By Mixing Process
Wet Mix Concrete Batch Plant
Equipped with a Twin Shaft Mixer to produce a homogeneous mixture before discharging. This is the industry standard for high-quality ready-mix and precast concrete.
Dry Mix Concrete Batching Plant
Discharges aggregates, cement, and water directly into the truck mixer. It offers higher efficiency and lower maintenance costs, ideal for projects where mixing occurs in transit.
(3) Special Configurations
Containerized Concrete Batching Plant
Features a modular, enclosed design for easy shipping and environmental protection. All components are integrated into standard container dimensions for quick assembly.
Foundation-Free Concrete Batching Plant
Requires no heavy civil foundation work. This design significantly reduces installation time and cost, making it ideal for temporary projects or sites with difficult ground conditions.
fixed concrete batching plant Specification
Skip Hoist Concrete Batching Plant
| Type | HZS25 | HZS35 | HZS50 | HZS75 | HZS100 | HZS150 | HZS200 | |
| Theoretical Production Capacity(m3/h) | 25 | 35 | 50 | 75 | 100 | 150 | 200 | |
| Concrete Mixer | Type | JS500 | JS750 | JS1000 | JS1500 | JS2000 | JS3000 | JS4000 |
| Discharging capacity(L) | 500 | 750 | 1000 | 1500 | 2000 | 3000 | 4000 | |
| Aggregate size(Pebble/Macadam)(mm) | 80/60 | 80/60 | 80/60 | 80/60 | 80/60 | 80/60 | 80/60 | |
| Matched Aggregate Batcher | PLD800 | PLD1200 | PLD1600 | PL2400 | PLD3200 | PLD4800 | PLD6400 | |
| Weighing Accuracy | Aggregate (KG) | 1500Kg ±2% | 2000Kg ±2% | 3000Kg ±2% | 4500Kg ±2% | 4500Kg ±2% | 6000Kg ±2% | 9000Kg ±2% |
| Cement(KG) | 300Kg ±1% | 450Kg ±1% | 900Kg ±1% | 1500Kg ±1% | 1500Kg ±1% | 3000Kg ±1% | 3000Kg ±1% | |
| Fly ash(KG) | 500Kg ±1% | 600Kg ±1% | 600Kg ±1% | 600Kg ±1% | 1500Kg ±1% | 1500Kg ±1% | 1500Kg ±1% | |
| Water (KG) | 200Kg ±1% | 300Kg ±1% | 600Kg ±1% | 600Kg ±1% | 1000Kg ±1% | 1000Kg ±1% | 1000Kg ±1% | |
| Additive(KG) | 20Kg ±1% | 30Kg ±1% | 100Kg ±1% | 100Kg ±1% | 100Kg ±1% | 100Kg ±1% | 100Kg ±1% | |
| Discharging Height(M) | 3.8 m | 3.8 m | 3.8 m | 4.1m | 4.1m | 4.1m | 4.1m | |
Belt Conveyor Concrete Batching Plant
| Type | HZS60 | HZS90 | HZS120 | HZS180 | HZS240 | ||
| Theoretical Production(m³/h) | 60 | 90 | 120 | 180 | 240 | ||
| Concrete Mixer | Type | JS1000 | JS1500 | MAO3000/2000 | MAO4500/3000 | MAO6000/4000 | |
| Power(KW) | 18.5 | 65.5 | 74 | 110 | 150 | ||
| Discharging Capacity(L) | 1000 | 1500 | 2000 | 3000 | 4000 | ||
| Aggregate Size(Pebble/Macadam)(mm) | 80/60 | 80/60 | 80 | 150 | 150 | ||
| Aggregate Bin Volume(m³) | 2/3/4×8.38 | 2/3/4×12 | 2/3/4×20 | 2/3/4×30 | 2/3/4×40 | ||
| Belt Conveying Capacity(t/h) | 300 | 450 | 550 | 650 | 900 | ||
| Weighing Accuracy | Aggregate (KG) | 3000Kg ±2% | 4500Kg ±2% | 4500Kg ±2% | 6000Kg ±2% | 9000Kg ±2% | |
| Cement(KG) | 900Kg ±1% | 1500Kg ±1% | 1500Kg ±1% | 3000Kg ±1% | 3000Kg ±1% | ||
| Fly ash(KG) | 600Kg ±1% | 600Kg ±1% | 1500Kg ±1% | 1500Kg ±1% | 1500Kg ±1% | ||
| Water (KG) | 600Kg ±1% | 600Kg ±1% | 1000Kg ±1% | 1000Kg ±1% | 1000Kg ±1% | ||
| Additive(KG) | 100Kg ±1% | 100Kg ±1% | 100Kg ±1% | 100Kg ±1% | 100Kg ±1% | ||
| Discharging Height(M) | 4.1 m | 4.1m | 4.1m | 4.1m | 4.1m | ||
Parameters are for reference only, please consult us for details.
Parts of fixed concrete batching plant
Mixer
Horizontal twin-shaft compulsory mixer has strong mixing ability, it can mix the materials evenly and effectively. It can mix concrete with different slumps and raw materials ratio. Its mixing blade and lining board are made of high chromium wear-resistant alloy. External shaft end support and special shaft seal ensure the long service life of the mixer. Planetary type mixer as an optional choice.
Batching Machine
The batching machine is divided into different silos, which can store cement, sand, aggregates, and other ingredients separately. The automated batching system ensures the accuracy of raw material dispensing.
Aggregate Conveying System
After weighing, the aggregate is sent to the stationary concrete mixer by the lifting hopper or belt conveying system.
Material storage system
Used for storing aggregates, powdered materials (such as cement, fly ash), additives, etc. required for concrete production. Reasonable design, ensuring continuous and stable material supply, and improving production efficiency.
Including cement silo, aggregate silo, powder silo, etc., used to store different raw materials.
Screw Conveyor
Engineered for the dust-free and high-speed transport of cement and fly ash, our screw conveyors ensure a continuous and uniform material flow from silos to the weighing system.
Weighing System
It has the function of automatic difference compensation, aggregates, cement, water fly ash and additive all has their own weighing system, and the results are accurate.
Control system
The whole plant is controlled by industrial control computer. This system has the following features: real-time data processing function; both automatic and manual control are available; simple and convenient operation, for the automatic control system, The PLC is the world famous Germany Brand, the electric components are Schneider Brand from France. It can save all the data of the plant and the materials ratio; It can also print all the report forms. Constant temperature containerized type of control room adopts sound and heat insulation colorful batten board which can ensure the working temperature of electrical devices and also provide a comfortable environment for the operator.
You can examine some photos of the product taken in our established facilities. For detailed information and references, you can contact our sales team by calling back or filling out the request form.
Key Features Of fixed concrete batching plant
Unlike standard systems, our plant discharges weighed liquid additives directly into the water weighing hopper first. This process ensures “secondary dissolution” of the additive before it enters the stationary concrete mixer, resulting in a much more homogeneous concrete mixture.
The water discharge system utilizes a combination of a pneumatic butterfly valve and a booster pump. This design not only accelerates water discharge to shorten the batch cycle but also creates a high-pressure spray that effectively cleans the mixer shaft, preventing concrete buildup.
(For Belt Conveyor Models) Our HZS60 stationary batching plant and larger models feature an Intermediate Waiting Bin located directly above the mixer. This allows the next batch of aggregates to be prepared and stored while the current batch is mixing, significantly eliminating wait times and boosting production speed.
(For Skip Hopper Models ) The loading bucket system is designed with a mechanical safety pin mechanism on the track. In addition to limit switches, this physical lock secures the bucket during maintenance, ensuring absolute safety for service personnel.
We optimize the stationary concrete mixer discharge system based on plant capacity. Smaller models (HZS25-60) utilize fast-response pneumatic discharge, while larger models (HZS75+) are equipped with powerful hydraulic discharge systems to ensure stable gate operation and prevent jamming during high-volume production.
The weighing system employs industry-leading S-type tension sensors. Installed with a flexible suspension design, these sensors isolate the weighing hoppers from external vibrations, ensuring accurate measurement for cement, water, and aggregates.
Advantages of fixed concrete batching plant
Why choose a stationary plant for your project? Our stationary batching plants are engineered to deliver long-term value, combining robust construction with advanced technology to ensure maximum efficiency and profitability.
Versatile Mixer Options: Twin Shaft & Planetary
Furnished mainly with robust Twin Shaft Mixers, we also offer high-precision 0.5m³ and 1.5m³ Planetary Mixers. This flexibility makes our plants perfect for ready-mix producers, contractors, and especially precast manufacturers requiring superior homogeneity.
High-Performance Concrete Capability
Designed for demanding projects, our plants can easily integrate specialized systems for Ice, Microsilica, and various additives. This capability is critical for producing high-strength concrete for dams, ports, and other extreme engineering applications.
Heavy-Duty Structure & Durability
Built with high-strength structural steel and premium components, our plants are designed for continuous, high-intensity operation. The robust chassis ensures exceptional stability and longevity, significantly reducing long-term maintenance costs.
Precise Batching & Intelligent Control
Equipped with a fully automated PLC system and advanced weighing algorithms, our plants ensure accurate batching of all materials. This guarantees consistent concrete quality that meets strict international standards while minimizing human error.
Ultimate Modular Design & Flexibility
Our ultimate modular design allows for easy transportation and quick installation and provides the flexibility to adapt to complex site conditions and add features as per project requirements. Whether you need to expand capacity or adjust the layout, we offers scalable solutions for your business growth.
Eco-Friendly & Safe Maintenance
Designed with advanced dust collection systems and noise reduction technology to meet environmental regulations. Spacious service platforms and safety walkways ensure easy access for maintenance, minimizing downtime and enhancing operator safety.
Operational Efficiency & On-Site Production
Producing concrete directly on-site eliminates the need for long-distance transportation. This significantly reduces fuel costs, transit delays, and the risk of concrete segregation, ensuring higher quality and smoother project schedules.
Long-Term Cost-Effectiveness
Although the initial investment is higher than mobile plants, stationary plants offer superior ROI for large-scale projects. The accumulated savings in material waste, labor, and maintenance over time make it the most economical choice for long-duration operations.
fixed concrete batching plant Price & Investment Guide
Price Overview & ROI Analysis
Investing in a stationary concrete batching plant is a strategic decision with high potential returns. With the rapid development of urban infrastructure and commercial real estate, centralized concrete production offers a stable and lucrative market.
How Much Does A Stationary Concrete Plant Cost?
The price of a stationary concrete plant varies based on capacity, configuration, and specific project requirements. Factors such as the mixer type (Twin Shaft vs. Planetary), aggregate feeding system (Skip Hopper vs. Belt Conveyor), and number of silos will influence the final cost.
For your reference, our entry-level model HZS25 (25m³/h) starts at approximately $30,000 USD (or 210,000 RMB). For larger commercial plants like the HZS120, prices will be higher depending on customization.
Calculate Your ROI
We encourage you to calculate the return on investment based on local market conditions:
· Cost: Raw materials (cement, sand, aggregate), water, electricity, and labor.
· Revenue: Local selling price of commercial concrete per cubic meter.
· Profit: (Revenue – Cost) x Daily Production Capacity.
In most high-demand markets, a stationary plant can pay for itself within 6 to 12 months.
Get A Customized Quote Today
Since every project is unique, we offer tailored solutions to maximize your budget efficiency. Contact our sales team with your specific requirements (capacity, project type, site conditions), and we will provide a detailed proposal and quotation within 24 hours.
Cost Breakdown & Total Cost of Ownership (TCO)
Understanding the full cost structure is crucial for accurate budgeting. A stationary concrete batching plant investment goes beyond the initial equipment price. We help you evaluate the Total Cost of Ownership (TCO) to ensure long-term profitability.
Calculate Your ROI
Initial Investment Breakdown:
Plant Equipment (50–60%): Includes the core components such as the Twin Shaft Mixer, batching system, cement silos, screw conveyors, and the main steel structure.
Foundation & Site Preparation (10–15%): Covers civil engineering costs for concrete foundations, ground leveling, water supply, and power connections.
Shipping & Installation (10–15%): Includes international freight, customs clearance, and on-site assembly/commissioning by our technical team.
Control & Automation (10–15%): Investment in the PLC control system, sensors, and software for automated operation.
Operational Costs
To maximize ROI, consider these ongoing expenses:
Raw Materials: Cement, aggregates, water, and additives (the largest portion of daily costs).
Energy Consumption: Electricity and fuel for the plant and loader.
Labor: Operators, maintenance staff, and loader drivers.
Maintenance: Routine replacement of wear parts (mixing blades, liners, conveyor belts). Our plants use high-quality wear-resistant parts to minimize this cost.
Investment Insight
While mobile plants may seem cheaper initially due to lower foundation costs, stationary plants offer superior long-term value for large projects. Their higher production stability, lower maintenance frequency, and longer service life result in a much lower cost-per-cubic-meter of concrete over 5-10 years.
How to Choose the Right fixed concrete batching plant for Your Project
Selecting the wrong stationary concrete mixing plant can lead to production bottlenecks, wasted materials, and inflated operating costs. To ensure you invest in a system that perfectly aligns with your operational goals, evaluate your project based on these four critical factors.
Determine Your Peak Production Capacity
Never guess your capacity needs. Calculate your maximum hourly concrete demand (m³/h) and the duration of continuous pours.
The Golden Rule: Choose a plant with a theoretical capacity 20% to 30% higher than your actual peak demand. For example, if you need 90m³/h consistently, an HZS120 plant provides a safe buffer, preventing equipment overload and eliminating concrete truck waiting times.
Assess Site Footprint & Feeding System
Your available land heavily dictates the plant’s structural configuration.
Limited Space? A Skip Hopper (Bucket) plant is compact, requires a smaller foundation, and is highly cost-effective for small to medium commercial operations.
Ample Space & High Volume? An inclined Belt Conveyor plant requires a larger footprint but delivers unmatched stability, continuous aggregate feeding, and shorter batch cycle times for mega-projects.
Concrete Mix Complexity & Mixer Type
The type of concrete you produce determines your mixer and batching machine configuration.
Mixer Type: Robust Twin-Shaft Mixers are the industry standard for commercial ready-mix (C20-C50) and infrastructure projects. However, if you are producing high-precision precast elements, a Planetary Mixer may be required for superior homogeneity.
Aggregate Bins: Complex mix designs require more aggregate types. Select a batching machine with 3 to 6 compartments to accommodate various stone sizes and sand without manual pre-mixing.
Silo Storage & Automation Level
Consider your local supply chain and operational workforce.
Cement Silos: How reliable is your local cement delivery? If logistics are slow or unpredictable, investing in multiple high-capacity silos ensures your plant won’t shut down due to material shortages.
Control System: Don’t compromise on automation. A trusted PLC system (e.g., Siemens, Schneider) with automatic moisture compensation and error-diagnostic features ensures consistent mix quality and reduces reliance on highly skilled operators.
Application Scenarios and Customized Solutions for fixed concrete batching plant
Our stationary concrete plants are engineered to adapt to the varied needs of modern construction. By tailoring configurations and control strategies, we ensure reliable, efficient concrete production for every project type.
Transportation Infrastructure
- Typical Applications: Highways, railways, bridges, tunnels, airports.
- Core Requirements:
- Production of High-Strength Concrete (C50+) with strict durability standards.
- Continuous, high-capacity output for large-scale paving.
- Recommended Solution:
- Large-Capacity HZS Series (120m³/h+): Equipped with Twin-Shaft Mixers for rapid, homogeneous mixing.
- High-Precision Dosing: Advanced aggregate batching ensures consistent quality for critical load-bearing structures.
Hydraulic & Marine Engineering
- Typical Applications: Dams, hydropower stations, ports, state defense projects.
- Core Requirements:
- Mass Concrete Production (e.g., RCC) with low heat of hydration.
- Resistance to erosion and corrosion in harsh environments.
- Recommended Solution:
- Specialized Additive Integration: Built-in systems for Ice and Microsilica dosing to control concrete temperature and durability.
- Weather-Resistant Design: Fully enclosed structure with anti-corrosion coating for long-term outdoor operation.
Precast Concrete Manufacturing
- Typical Applications: Concrete pipes, hollow core slabs, tunnel segments, municipal elements.
- Core Requirements:
- High-Precision (±1%) weighing for standardized components.
- Uniform mixing of zero-slump (dry) and plastic concrete.
- Recommended Solution:
- Planetary Mixer Option: Ensures superior homogeneity for high-quality precast elements.
- Automated Production Integration: Seamlessly connects with precast production lines for synchronized operation.
Commercial & Residential Construction
- Typical Applications: Housing projects, commercial complexes, industrial facilities.
- Core Requirements:
- Stable production of normal-strength concrete (C20–C40).
- Cost-effectiveness and high ROI.
- Recommended Solution:
- Flexible Modular Design: Rapid installation and easy relocation for varying project phases.
- Optimized Cost Control: Efficient material usage and low maintenance design maximize profitability for ready-mix suppliers.
Our fixed concrete batching plants In Action
Stationary Concrete Batch Plant in Malaysia
Stationary Concrete Batch Plant in Australia
Stationary Concrete Batch Plant in Canada
ABOUT US
Since our founding over three decades ago, CCS has established itself as a premier concrete plant manufacturer trusted by top-tier contractors and ready-mix producers worldwide. We don’t just assemble equipment; we engineer highly profitable, long-lasting concrete production hubs for landmark infrastructure, high-speed railways, and major dams.
While there are many concrete plant manufacturers in the global market, CCS stands out through our unwavering commitment to heavy-duty durability, fully customized turnkey solutions, and strict international certifications (CE, ISO, SGS, BV).
Today, our global footprint spans across diverse and extremely demanding environments. We proudly serve clients in advanced regions like Australia and South Korea, while powering massive urbanization and infrastructure projects throughout Southeast Asia, the Middle East, Central Asia, and Africa.
As a full-service organization, our commitment to your success extends far beyond the sale. We provide an end-to-end support system designed to maximize your Return on Investment (ROI).
Pre-Sales Engineering & Investment Consulting
Expert Installation & Operational Training
24/7 After-Sales Support & Maintenance
💡Expert Insights: Navigating fixed concrete batching plant
What is fixed concrete batching plant？
A stationary concrete batching plant is a large-scale, highly automated facility permanently installed at a specific location to produce industrial-grade concrete. Unlike mobile units designed for temporary sites, a stationary plant is engineered for long-term stability, massive production capacity, and superior precision.
By precisely weighing and homogeneously mixing aggregates (sand, gravel), cement, water, and specialized additives according to predetermined recipes, these plants ensure the consistent quality of concrete required for critical infrastructure, commercial construction, and precast manufacturing.
Core Components
While every plant layout is uniquely tailored to the site, a standard stationary batching plant generally consists of:
- Storage Systems: Aggregate bins and cement silos.
- Weighing Systems: High-precision scales for aggregates, cement, water, and additives.
- Conveying Systems: Belts or skip hoists to transport materials.
- Mixing Unit: The core mixer (typically a Twin-Shaft or Planetary mixer).
- Control Center: An automated PLC system governing the entire process.
Why “Stationary”?
The term “stationary” refers to its robust foundation and structural design. Because it is securely anchored to the ground, it can handle heavy-duty continuous operation with minimal vibration. This solid foundation allows for the integration of high-capacity mixers, extensive environmental protection systems (like full winter enclosures or dust collectors), and complex additive systems that mobile plants simply cannot accommodate.
How Does a fixed concrete batching plant Work? (Working Principle)
The operation of a stationary batching plant is a highly synchronized process governed by an automated PLC control system. The entire workflow can be broken down into five precise steps: from raw material storage to the discharge of fresh concrete.
Step 1: Material Storage & Feeding
Different types of aggregates (sand, gravel) are loaded into separate compartments of the aggregate batcher using a wheel loader. Simultaneously, bulk cement and fly ash are stored in sealed silos, while water and liquid additives are kept in dedicated tanks.
Step 2: Precise Weighing & Batching
Once the operator inputs the required concrete recipe into the control panel, the automated weighing process begins:
- Aggregates: Discharged via pneumatic gates and weighed precisely on a load-cell-suspended conveyor belt or hopper.
- Powders (Cement/Fly Ash): Conveyed via screw conveyors into independent weighing scales above the mixer.
- Water & Additives: Pumped into individual liquid scales. For better homogeneity, CCS plants often pre-mix additives with water (secondary dissolution) before they enter the mixer.
Step 3: Conveyance to the Mixer
Once all materials reach their exact target weights, they are transferred to the central mixing unit. Aggregates travel up an inclined belt conveyor (or a skip hoist bucket), while powders and liquids drop directly from their scales via gravity and pressurized pumps.
Step 4: Homogeneous Mixing
The heart of the plant, typically a Twin-Shaft or Planetary mixer, combines all the dry and wet ingredients. The mixer’s powerful blades aggressively agitate the materials for a set duration, ensuring a completely homogeneous mixture with the desired strength and workability.
Step 5: Discharge & Transport
Upon completion of the mixing cycle, the mixer’s bottom discharge gate opens pneumatically or hydraulically. The fresh concrete drops directly into a waiting transit mixer truck or a concrete pump hopper, ready to be delivered to the construction site.
Layout of fixed concrete batching plant
How to Choose: Stationary vs. Mobile Concrete Plant?
Deciding between a stationary and a portable concrete batching plant is one of the most critical choices for any contractor or ready-mix supplier. Both types serve the same primary function—producing high-quality concrete—but they are engineered for very different operational models. To make the right decision, you must evaluate your project’s duration, production volume, and relocation frequency.
Key Differences to Consider
Project Duration & Relocation
Choose Stationary If: Your project (like a large dam, airport, or precast factory) will last for several years in a single location, or if you are setting up a commercial ready-mix business. Stationary plants require robust concrete foundations, making them harder to move but incredibly stable for long-term use.
Choose Mobile If: You are working on short-term projects (like road construction or wind farms) that require the plant to be moved every few months. Mobile plants are pre-wired on a wheeled chassis, allowing for rapid deployment and installation without massive civil foundation work.
Production Capacity
Stationary Advantage: They are built for high-volume output. CCS stationary plants can achieve capacities up to 240 m³/h. With larger aggregate bins, bigger twin-shaft mixers, and wider conveyor belts, they handle continuous, heavy-duty production flawlessly.
Mobile Limitation: Due to chassis weight and size restrictions for road transport, mobile plants generally max out around 120 m³/h. Their aggregate storage capacity is also typically smaller, requiring more frequent refilling by wheel loaders.
Initial Cost vs. Long-Term ROI
Stationary Plants: The initial setup cost is higher due to extensive foundation construction, site preparation, and longer installation times. However, for long-term projects, the lower maintenance costs, higher efficiency, and greater durability result in a significantly better Return on Investment (ROI) and a lower cost-per-cubic-meter over time.
Mobile Plants: Offer lower upfront installation costs and immediate production capabilities. They are highly cost-effective for contractors who need to frequently change sites, saving heavily on transport and re-erection expenses.
Summary: The CCS Recommendation
Invest in a Stationary Plant if you are building a permanent commercial ready-mix facility, a precast components factory, or supplying a multi-year mega-project where maximum capacity and unyielding stability are non-negotiable.
Opt for a Mobile Plant if agility is your priority and your business model relies on moving from one medium-sized construction site to the next.
Wet vs. Dry Concrete Batching Plants: What’s the Difference?
When configuring a stationary concrete production facility, one of the fundamental decisions is choosing between a wet mix and a dry mix plant. The primary distinction lies in where the concrete is actually mixed: inside a central mixer at the plant, or inside the rotating drum of the concrete truck during transit.
Wet Concrete Batching Plants (Central Mix)
In a wet mix plant, all ingredients—aggregates, cement, water, and additives—are precisely weighed and then discharged into a central mixer (typically a twin-shaft or planetary mixer). The materials are vigorously agitated for a set time until a fully homogeneous wet concrete is formed. Only then is the finished concrete discharged into the transit truck.
- Pros : Superior quality control. The automated central mixer guarantees a consistent water-cement ratio, perfect homogeneity, and higher concrete strength.
- Cons : Higher initial investment and maintenance costs due to the central mixing unit and its wear parts.
Dry Concrete Batching Plants
A dry mix plant does not have a central mixer. The plant’s role is strictly limited to weighing and dispensing. The precisely weighed dry ingredients (sand, gravel, cement) are discharged via a chute directly into the drum of a ready-mix truck. Water is either added at the same time or piped into the truck separately. The actual mixing relies entirely on the truck’s rotating drum as it drives to the construction site.
- Pros : Lower upfront equipment cost, smaller physical footprint, faster batching cycle at the plant, and significantly lower maintenance (no central mixer to clean or repair).
- Cons : Concrete quality and consistency rely heavily on the truck driver and the condition of the truck’s drum fins. It is much harder to control the exact water-cement ratio, making it unsuitable for strict-specification engineering projects.
Which One Should You Choose?
Choose a Wet Mix Plant if you are supplying commercial ready-mix concrete, manufacturing precast elements, or working on major infrastructure (highways, dams, airports) where strict quality control and structural integrity are non-negotiable.
Choose a Dry Mix Plant if you are operating on a tight budget, covering vast geographic areas where transit times are exceptionally long, or producing lower-grade concrete where perfect homogeneity is not the top priority.
Guide to Building, Maintaining, and Troubleshooting a fixed concrete batching plant
Establishing a stationary batching plant is a systematic engineering project. From initial site planning to daily operations, following best practices ensures equipment longevity and continuous high-quality production.
Phase 1: Site Preparation & Construction
Building a stationary plant requires close coordination between the buyer’s civil works team and the manufacturer’s installation engineers.
- Site Selection: Choose a flat, stable, and well-drained area. It should be close to main roads for easy raw material delivery and ideally within 10–15 km of your main construction sites to reduce transit time.
- Foundation Work: Unlike mobile plants, stationary units require deep, reinforced concrete foundations to support the heavy silos and mixer chassis. CCS provides precise layout drawings for your local civil team to follow.
- Installation & Commissioning: Once the foundation is cured, the steel structures, mixer, and control cabin are erected using cranes. Following assembly, a rigorous 3-to-7-day debugging phase is conducted to calibrate the weighing sensors and test the PLC automation system.
Phase 2: Essential Maintenance Practices
Proactive maintenance prevents costly downtime. A strict routine should be established from day one:
- Daily Cleaning: Thoroughly clean the interior of the mixer and the discharge gates after every shift to prevent concrete buildup on the shafts and blades.
- Lubrication Management: Regularly check the centralized lubrication pump. Ensure sufficient grease is reaching the mixer’s shaft-end seals and bearings to prevent cement slurry penetration.
- Wear Parts Inspection: Periodically inspect high-friction components like mixing blades, liners, and conveyor belts. Replace them promptly when worn to maintain mixing efficiency.
Phase 3: Common Problems & Solutions
Even premium equipment encounters occasional issues. Here is how to handle the most common ones:
- Issue: Inaccurate Weighing.
- Solution: Check if the weighing hoppers are physically jammed by external objects. Clean the load cells and recalibrate the scales through the PLC system.
- Issue: Pneumatic System Failure / Slow Gates.
- Solution: Inspect the air compressor for adequate pressure. Drain any accumulated water from the air filter and check for leaking air hoses.
- Issue: Unstable Concrete Quality.
- Solution: Verify that the aggregate moisture compensation radar is working. Ensure operators are strictly following the programmed mix recipes without unauthorized manual overrides.
🤝Don’t Worry, CCS is Here to Help
Navigating the setup and maintenance of a stationary plant can seem daunting, but you are never alone. CCS provides comprehensive foundation drawings, dispatches expert engineers for on-site installation, and offers lifetime technical support. We train your local operators until they are fully confident in running and maintaining the plant.
Essential Auxiliary Equipment for Your Concrete Business
A stationary batching plant is the heart of your operation, but to provide a complete and competitive service to your end-users, you need the right auxiliary equipment. Offering delivery and pumping services not only solves your clients’ logistical problems but also significantly increases your profit margins.
Depending on your business model, consider adding the following equipment to your fleet:

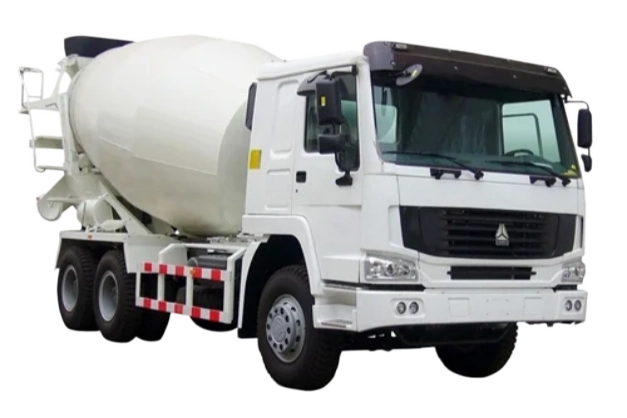

Transit Mixer Trucks
The Lifeline of Ready-Mix: You cannot sell commercial concrete without a way to transport it. Transit mixers keep the concrete agitated during delivery to prevent premature setting.
Recommendation: The size and number of trucks you need depend directly on your plant’s hourly capacity and the average distance to construction sites.

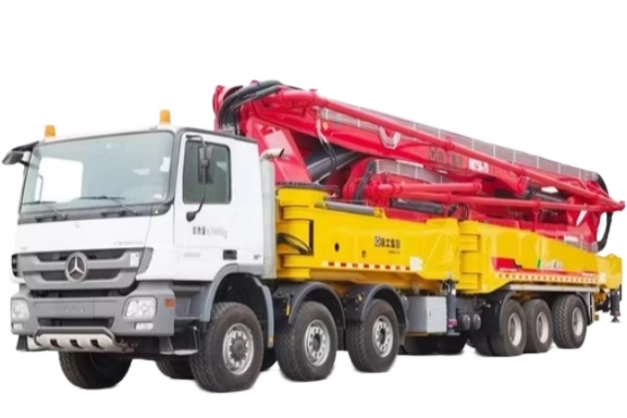

Truck-Mounted Concrete Boom Pumps
Premium Service Offering: Many clients ordering concrete for high-rise buildings or large infrastructure projects lack the means to place it. By offering a boom pump service alongside your concrete sales, you become a highly attractive “one-stop-shop.”
Recommendation: Ideal for projects requiring rapid, flexible, and high-altitude concrete placement.

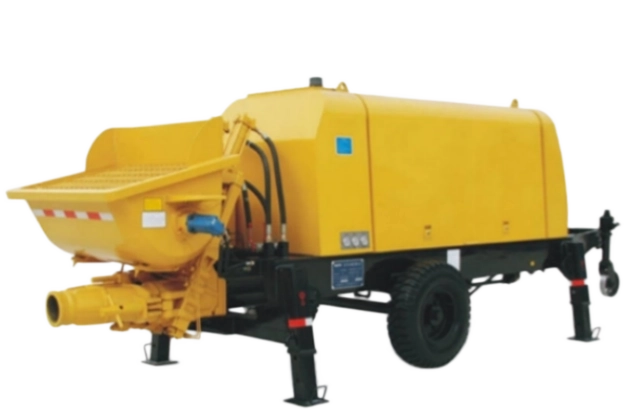

Concrete Trailer Pumps
Cost-Effective Long-Term Solution: Unlike boom pumps, trailer pumps are stationary units placed near the building site. Transit mixers discharge directly into the pump’s hopper, which then pushes the concrete through pipelines to extreme heights or long distances.
Recommendation: A highly economical choice for long-term, fixed-location projects like high-rise residential towers.
💡Pro Tip for Maximizing Profits
In the commercial ready-mix industry, suppliers who provide both the concrete and the placement equipment (trucks and pumps) command higher market shares. You can easily bundle these services and factor the equipment costs into your final price per cubic meter, ensuring a rapid return on your investment.
Starting Your Concrete Business: Essential Steps for Success
Investing in a stationary batching plant is highly rewarding, but long-term profitability requires more than just buying equipment. For entrepreneurs and contractors looking to enter the ready-mix market, a clear strategic roadmap is essential.
Step 1 Market Research & Business Planning
Before purchasing land or equipment, evaluate your local concrete demand. Are you targeting residential developments, commercial high-rises, or government infrastructure? Develop a solid business plan outlining your target capacity, competitor pricing, and ROI projections to secure financing from banks or investors.
Step 2 Strategic Location & Permits
Choose a site that minimizes logistics costs. It should be close to raw material suppliers (quarries, cement plants) and within a 15-20 km radius of your target construction hubs. Ensure the site has adequate power, water supply, and complies with local zoning and environmental regulations before applying for manufacturing permits.
Step 3 Investing in the Right Equipment
This is where CCS becomes your strongest partner. Your plant is the heart of your business. For small-to-medium commercial operations, an HZS60 or HZS90 provides the perfect balance of cost and output. For large-scale multi-project supply, investing in heavy-duty models like the HZS120 or HZS180 with fully automated PLC controls ensures you can meet high-volume demands without downtime.
Step 4 Building a Reliable Supply Chain & Logistics Fleet
A successful plant needs a steady flow of high-quality cement, sand, and aggregates. Partner with dependable local suppliers to prevent production delays. Finally, build an efficient distribution network—whether by investing in your own fleet of transit mixer trucks or partnering with trusted logistics companies—to ensure your fresh concrete reaches clients on time.
How to Choose a Reliable fixed concrete batching plant Manufacturers?
Investing in a stationary batching plant is a major financial decision. Partnering with the right manufacturer ensures you receive reliable equipment, robust technical support, and long-term value. When evaluating potential suppliers, use these five key criteria to identify an industry leader:
(1) Proven Industry Experience
What to Look For: Look for manufacturers with decades of specialized experience. A long track record proves their expertise in design, production, and solving real-world engineering challenges.
The CCS Advantage: With over 32 years of dedicated manufacturing excellence, CCS has deep roots in concrete machinery, ensuring every plant we build is battle-tested and refined.
(2) Global Presence & Successful Case Studies
What to Look For: A reputable supplier should have a strong global footprint with successful installations across diverse climates and regulatory environments. Ask for project references.
The CCS Advantage: Our stationary plants are powering critical infrastructure projects in demanding markets worldwide, from Australia and South Korea to Southeast Asia, the Middle East, and Africa.
(3) Customization & Product Range
What to Look For: Avoid “one-size-fits-all” approaches. A professional manufacturer offers flexibility, from compact mobile units to massive stationary plants, tailoring configurations to your exact site layout and mix requirements.
The CCS Advantage: We provide a comprehensive portfolio (Stationary, Mobile, Dry Mix) and specialize in Ultimate Modular Design, ensuring your plant perfectly aligns with your operational goals.
(4) Comprehensive After-Sales Support
What to Look For: A plant is only as good as the service behind it. Ensure the manufacturer provides turnkey installation, operator training, rapid spare parts delivery, and robust warranty terms.
The CCS Advantage: We are a full-service organization. From ROI forecasting to 24/7 remote diagnostic assistance and dispatching engineers for on-site erection, our support never sleeps.
(5) Factory Transparency & Certified Quality Standards
What to Look For: Credible manufacturers adhere to strict international manufacturing standards and welcome factory inspections. Verified certifications are non-negotiable proof of quality, safety, and environmental compliance.
The CCS Advantage: Our commitment to excellence is backed by globally recognized certifications, including CE, ISO, SGS, and BV. We utilize heavy-duty structural steel and premium global components in every plant we build. We invite you to visit our manufacturing facilities or request a live virtual tour to witness our rigorous quality control processes firsthand.
FAQ
Installation time varies based on the plant size and local site conditions. Generally, once the concrete foundation is fully cured, the mechanical erection and electrical wiring take about 7 to 15 days. This is followed by a 3 to 7-day commissioning phase to calibrate the weighing systems and test the PLC automation under load. CCS dispatches experienced engineers to your site to guide the entire process and ensure a swift, safe startup.
With robust heavy-duty steel structures, premium global components, and specialized wear-resistant mixing blades, our stationary plants are built for long-term durability. With proper daily maintenance and timely replacement of standard wear parts, our plants reliably operate for 10 to 15 years or more, even under continuous high-intensity production in harsh environments.
Concrete quality relies entirely on precise raw material proportioning and uniform mixing. CCS plants achieve this through two core technologies:
First, High-Precision Weighing: We utilize independent weighing hoppers equipped with world-class S-type load cells. This isolates the scales from mixer vibrations, ensuring aggregate, cement, and water measurements are accurate to within ±1%.
Second, Advanced PLC Automation: The intelligent control system monitors moisture levels in the sand and automatically adjusts the water-cement ratio in real time. Combined with our heavy-duty Twin-Shaft or Planetary mixers, the plant guarantees a perfectly homogeneous and high-strength mix every single batch, completely eliminating human error.
Yes, absolutely. Our HZS series is highly versatile. By utilizing high-performance Twin-Shaft or Planetary mixers, our plants can produce normal-strength commercial concrete, high-strength concrete (C50+), zero-slump dry concrete, and RCC (Roller Compacted Concrete). Furthermore, the PLC control system allows you to store and instantly switch between hundreds of different mix recipes to meet specific project demands.
We understand that downtime equals lost revenue. CCS provides 24/7 remote technical support to quickly diagnose PLC or software issues. For mechanical maintenance, we supply a comprehensive package of critical wear parts with your initial shipment. Should you need additional parts, our global logistics network ensures fast delivery of genuine CCS components directly to your site.
If your site has a stable and sufficient municipal power supply, a generator is not mandatory. However, if you are operating in a remote area with unreliable grid power or frequent outages, we strongly recommend investing in a backup diesel generator. This ensures uninterrupted production and prevents fresh concrete from setting inside the mixer during an unexpected power cut. We can advise you on the exact KVA rating required for your specific plant model.
Yes, absolutely. CCS stationary batching plants feature an Ultimate Modular Design, which provides exceptional flexibility for future business growth.
If your production demands increase, you do not need to buy an entirely new plant. You can easily expand your operation by adding extra cement silos to increase storage, installing additional aggregate bin compartments for more complex mix designs, or upgrading to a higher-capacity twin-shaft mixer. Our control software is also fully scalable, allowing seamless integration of new components (like ice or microsilica dosing systems) without disrupting your existing workflow.
Related Products
Customize Your Solutions
When you invest hundreds of thousands of dollars into a concrete facility, you cannot afford to gamble on unreliable equipment. A premium, CE/ISO-certified CCS plant is the foundation of a sustainable, high-margin ready-mix business.
FEW TIPS:
· Please describe the capacity per hour of the batching plant (e.g., 25m³/h-240m³/h).
· Please describe the type of project (e.g., building house, factory, road, bridge, dam, airport, etc.).
· Please tell us the project location and estimated project start-up date.
· Please detail your specific requirements or expectations (e.g., project site, voltage, climate, etc.).
Tell us your need, our experts will reply you with in 12 hours.
