compact Concrete Batching Plant
Capacity: 25m ³/h ~ 180m ³/h | Type: belt or hopper feeding | Cost: $28,000-$190,000
compact Concrete Batching Plant For Sale
When observing traditional ready-mix facilities, passersby and new investors often ask a fundamental question: why are concrete plants so tall? The answer lies in gravity. Traditional stationary plants rely on a vertical gravity-flow design. Raw materials must be hoisted to the absolute top of a massive tower so they can drop sequentially through gravity-fed weighing hoppers and into the central mixer. While highly efficient, this towering structure requires extensive land area, heavy civil foundations, and complex, time-consuming assembly.
A compact concrete batching plant (also known as a compact batching plant) is the modern, low-profile alternative to these towering structures. By utilizing innovative modular engineering, integrated skip-hoist systems, and containerized layouts, these plants drastically reduce the overall height and footprint of concrete production. This compact structure allows contractors to bypass expensive and lengthy foundation-building processes, making it the ideal solution for tight urban job sites, remote projects, and temporary developments where space is a premium.
compact Concrete Batching Plant Price List
While the Containerized Series (HZS-C) carries a premium initial price for its fully enclosed, eco-friendly structure, it is engineered to fit perfectly into standard shipping containers. This unique design can reduce your trans-oceanic shipping costs by up to 40%, significantly lowering your final landed cost.
| Best Products | Production Capacity | Estimated EXW Price |
| Foundation-Free Series (Mini/Medium) FHZS-25 ~ FHZS-75 | 25 m³/h ~ 75 m³/h | $28,000 – $65,000 |
| Containerized Series (Standard HZS-60C ~ HZS-90C | 60 m³/h ~ 90 m³/h | $60,000 – $105,000 |
| Containerized Series (Mega-Capacity) HZS-120C ~ HZS-180C | 120 m³/h ~ 180 m³/h | $125,000 – $190,000+ |
The price is for reference only. Please get in touch with us for the latest quotation.
compact Concrete Batching Plant Price List
While the Containerized Series (HZS-C) carries a premium initial price for its fully enclosed, eco-friendly structure, it is engineered to fit perfectly into standard shipping containers. This unique design can reduce your trans-oceanic shipping costs by up to 40%, significantly lowering your final landed cost.
| Best Products | Production Capacity | Estimated EXW Price |
| Foundation-Free Series (Mini/Medium) FHZS-25 ~ FHZS-75 | 25 m³/h ~ 75 m³/h | $28,000 – $65,000 |
| Containerized Series (Standard HZS-60C ~ HZS-90C | 60 m³/h ~ 90 m³/h | $60,000 – $105,000 |
| Containerized Series (Mega-Capacity) HZS-120C ~ HZS-180C | 120 m³/h ~ 180 m³/h | $125,000 – $190,000+ |
The price is for reference only. Please get in touch with us for the latest quotation.
Why Your Project Needs a Compact Concrete Batching Plant
The decision to invest in a compact concrete batching plant is driven by the need to overcome severe spatial, logistical, and environmental constraints. Here are the three primary reasons why modern contractors are shifting toward low-profile, space-saving production:
Maximizing Confined Land Spaces
The most obvious benefit is the “compressed footprint.” By utilizing vertical skip-hoists or internally integrated belt conveyors, a compact plant cuts the required land area by up to 40%. This allows you to set up a highly profitable ready-mix operation in congested city centers, narrow highway corridors, or tight construction yards where standard sprawling plants simply cannot fit.
Optimized Logistics & Minimum Civil Costs
Traditional plants require expensive international shipping and deep concrete foundations that take weeks to cure. In contrast, our compact series is designed for ultimate cost-efficiency. Containerized models fit perfectly into standard 40HQ shipping containers, slashing ocean freight. Meanwhile, foundation-free models feature a heavy-duty steel skid base, allowing installation on any pre-compacted flat surface, saving you tens of thousands of dollars in initial setup costs.
Eco-Friendly Operation & Rapid Deployment
Urban projects demand green solutions. Containerized compact plants are fully enclosed, acting as a powerful acoustic barrier and trapping cement dust. Furthermore, because these modular units arrive partially pre-assembled and pre-wired with aviation plugs, your crew can bypass complex assembly. This strategy allows you to transition from delivery to producing commercial-grade concrete in record time, while easily passing strict municipal environmental audits.
compact Batch Plant Models
We understand that every project has unique requirements. We offer flexible configurations designed to match your specific site conditions, production capacity, and budget.
MINI COMPACT PLANT
Mini Foundation-Free Plant
FHZS-25 / FHZS-35
Capacity: 25 – 35 m³/h
A highly cost-effective, space-saving skip hoist setup. Perfect for small housing projects or cramped urban repair sites requiring rapid, zero-foundation deployment.

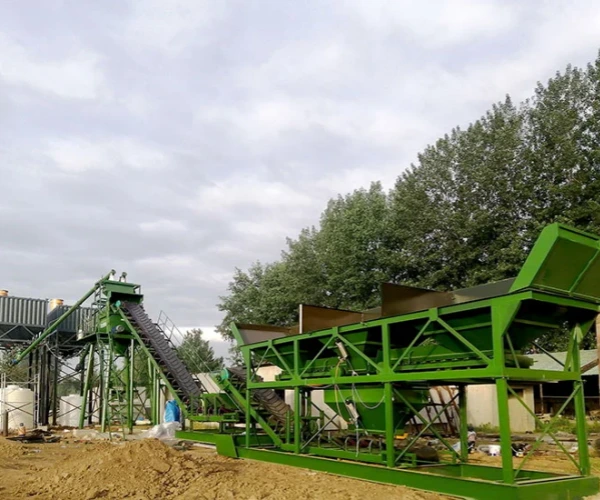

MEDIUM COMPACT PLANT
Commercial Foundation-Free Plant
FHZS-50 / FHZS-75
Capacity: 50 – 75 m³/h
The mid-range workhorse. Balances industrial mixing power with a heavy-duty skid-mounted base, eliminating deep concrete civil works for contractors on the move.

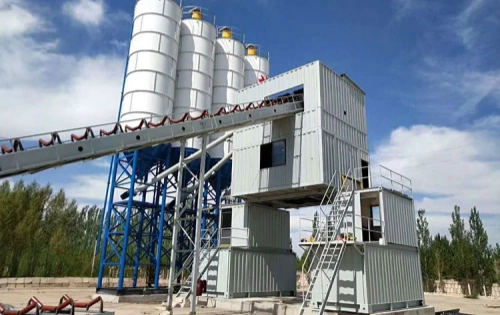

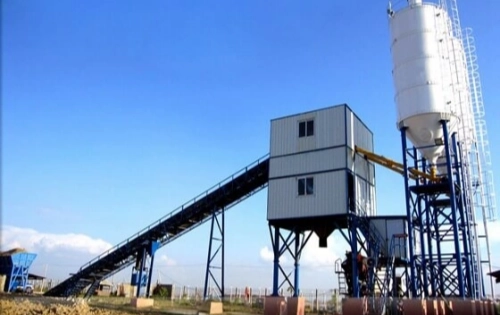

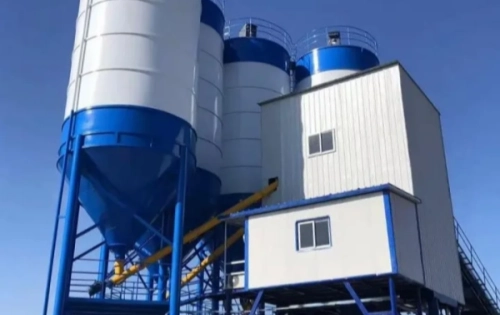

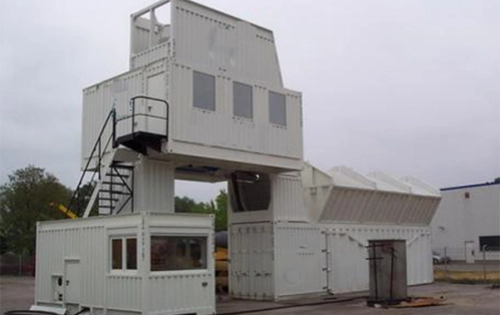

CONTAINERIZED ECO-PLANT
Containerized Eco-Plant
HZS-60C / HZS-90C
Capacity: 60 – 90 m³/h
Built within standard 40HQ dimensions for ultra-low shipping costs. The enclosed structure dramatically reduces dust and noise, guaranteeing urban environmental compliance.
HIGH-CAPACITY CONTAINER PLANT
Mega-Capacity Container Plant
HZS-120C / HZS-180C
Capacity: 120 – 180 m³/h
Delivers massive, continuous output (up to 180m³/h) in a highly compressed footprint. The ultimate space-saving solution for mega-infrastructure and high-volume commercial supply.
compact Concrete Batching Plant Specification
To meet diverse capacity requirements while maintaining a minimal footprint, our compact product line is engineered into two specialized series: the FHZS Foundation-Free Series (ideal for small-to-medium projects) and the HZS-C Containerized Series (designed for heavy-duty, high-capacity urban commercial supply).

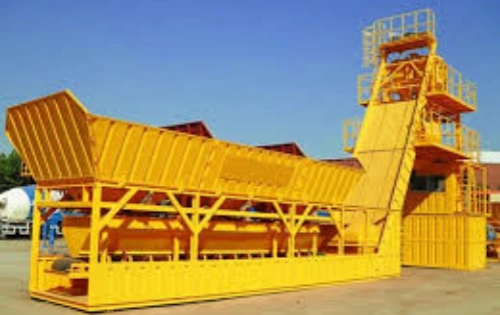

FHZS Series (Foundation-Free Compact Plants)
This series utilizes a space-saving skip hopper system and is designed to be installed directly on pre-compacted flat ground, saving up to 15% on civil engineering costs.
| Specifications | FHZS-25 | FHZS-35 | FHZS-50 | FHZS-75 |
| Theoretical Productivity (m3/h) | 25 | 35 | 50 | 75 |
| Mixer Discharging Volume (L) | 500 | 750 | 1000 | 1500 |
| Mixer Feeding Volume (L) | 800 | 1200 | 1600 | 2400 |
| Mixer Motor Power (kW) | 18.5 | 30 | 18.5×2 | 30×2 |
| Aggregate Material Quantity (m3) | 3×3 | 5×3 | 8×3 | 12×3 |
| Cycle Period (s) | 60 | 60 | 60 | 60 |
| Max. Aggregate Size (mm) | 80/100 | 80/100 | 80/100 | 80/100 |
| Cement Silo (t) (optional) | 50×1 | 50×1 | 100×1 | 100×2 |
| Aggregate Weighing System | ±2% | ±2% | ±2% | ±2% |
| Powder Material Weighing System | ±1% | ±1% | ±1% | ±1% |
| Water Weighing System | ±1% | ±1% | ±1% | ±1% |
| Additive Weighing System | ±1% | ±1% | ±1% | ±1% |
HZS-C Series (Containerized Compact Plants)
This premium series is built inside standard shipping container dimensions, offering the lowest international transport costs and ultimate environmental protection.
| Specifications | HZS-60C | HZS-90C | HZS-120C | HZS-180C |
| Theoretical Productivity (m3/h) | 60 | 90 | 120 | 180 |
| Mixer Discharging Volume (L) | 1000 | 1500 | 2000 | 3000 |
| Mixer Feeding Volume (L) | 1600 | 2400 | 3200 | 4800 |
| Mixer Motor Power (kW) | 18.5×2 | 30×2 | 37×2 | 55×2 |
| Discharging Height (m) | 4.1 | 4.1 | 4.3 | 4.3 |
| Aggregate Material Quantity (m3) | 7×4 | 15×4 | 15×4 | 20×4 |
| Cycle Period (s) | 60 | 60 | 60 | 60 |
| Max. Aggregate Size (mm) | 80/100 | 80/100 | 80/100 | 80/100 |
| Cement Silo (t) (optional) | 2×100 | 3×100 | 4×100 | 4×100 |
| Aggregate Weighing System | ±2% | ±2% | ±2% | ±2% |
| Powder Material Weighing System | ±1% | ±1% | ±1% | ±1% |
| Water Weighing System | ±1% | ±1% | ±1% | ±1% |
| Additive Weighing System | ±1% | ±1% | ±1% | ±1% |
| Installation Power (kW) | = 110 | = 160 | ^220 | â—Ž290 |
| Feeding Mode | Skip Hopper and Belt Conveyor | |||
| Control Mode | Full Automate Computer PC Control | |||
Parameters are for reference only, please consult us for details.

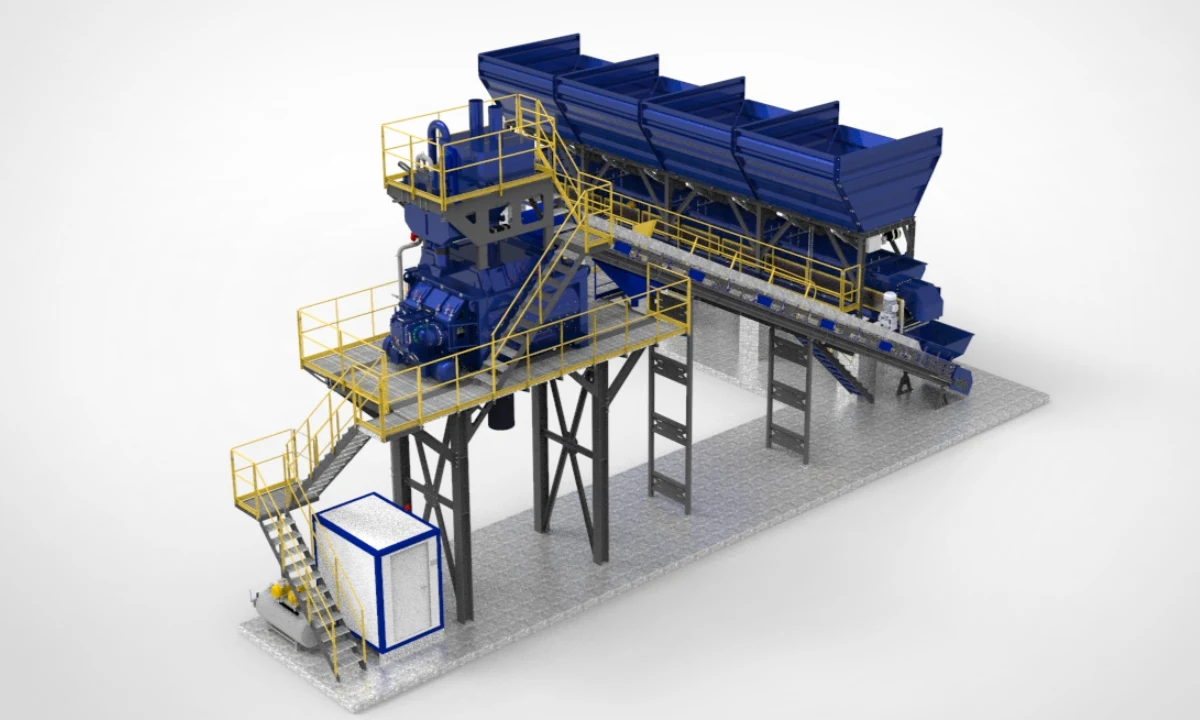

Core Components of the Compact Concrete Batching Plant
Designing a high-performance compact concrete batching plant requires masterful engineering. We must compress massive industrial components into a significantly smaller footprint without sacrificing output or durability. Here is how we engineer the core parts of our compact and containerized series to deliver unyielding performance in tight spaces:
Integrated Aggregate Batching System
In a standard plant, aggregate bins take up massive horizontal space. We utilize deeply angled, high-capacity PLD series storage bins that maximize vertical space. For the foundation-free (FHZS) series, these bins are mounted directly on a heavy-duty steel skid base. This eliminates the need for sprawling concrete retaining walls while maintaining a precision weighing accuracy of ±2%.
Vertical Skip-Hoist or Internal Belt Conveyor
The conveying system dictates the overall length of the plant. To slash the land requirement by 40%, the FHZS series utilizes a heavy-duty vertical skip-hoist (bucket) system running on an optimized steep track to lift materials directly into the mixer. For higher-capacity containerized models (HZS-C), we utilize an internal inclined belt conveyor completely housed within the container frame, ensuring high-speed continuous feeding with zero external dust exposure.
Heavy-Duty Twin-Shaft Compulsory Mixer
We never compromise on the “heart” of the plant. Despite the tight enclosure, every compact plant is equipped with a full-sized JS-Series twin-shaft mixer (ranging from JS500 to JS3000). Fitted with high-chromium alloy liners and blades, it guarantees the aggressive, high-shear mixing action required to produce commercial-grade concrete with perfect homogeneity.
Containerized Control Cabin & Smart PLC
Operating in a compact space requires precise, automated coordination. The entire “brain” of the operation is housed within an insulated, climate-controlled container module. Equipped with a Siemens or Schneider PLC system, it features automatic difference compensation for strict ±1% powder dosing accuracy. The module is factory pre-wired with quick-connect aviation plugs, enabling lightning-fast site setup without complex cable routing.

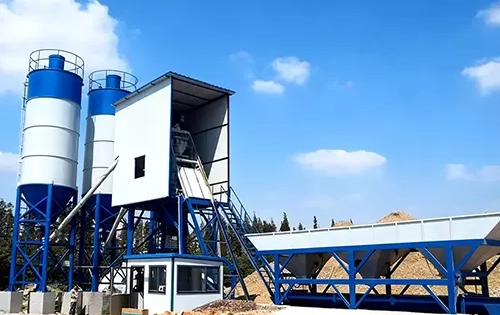

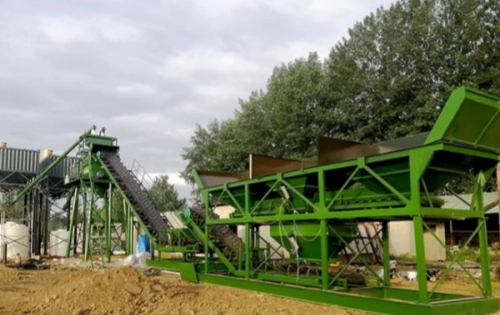

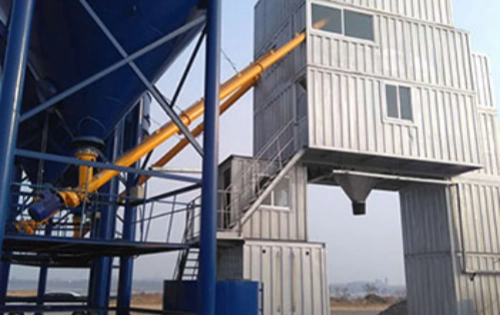

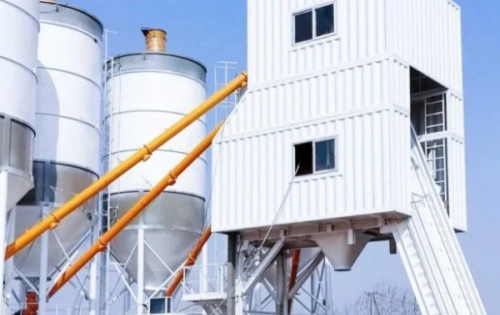

You can examine some photos of the product taken in our established facilities. For detailed information and references, you can contact our sales team by calling back or filling out the request form.
Strategic Advantages of Compact Concrete Batching Plants
Why are contractors increasingly choosing a compact concrete batching plant over traditional, sprawling stationary setups? The decision is driven by the need to overcome severe spatial and financial bottlenecks. Here are the five core operational benefits:
Maximizing Confined Land Spaces
In urban centers, industrial land is expensive and scarce. By utilizing vertical skip-hoists or internally integrated belt conveyors, a small compact concrete batching plant cuts the required land footprint by up to 40%. This allows you to set up a highly profitable ready-mix operation on plots where standard plants simply cannot fit.
Slashing Civil Engineering Costs
Time spent digging and curing deep concrete foundations is money lost. Many of our compact models feature a heavy-duty skid-mounted base, requiring zero underground foundation work. You simply need a flat, pre-compacted surface, saving thousands of dollars in site preparation.
Optimized International Logistics
High ocean freight rates can ruin a project’s budget. The modular units of our compact series are meticulously engineered to fit perfectly into standard 40HQ shipping containers. This “logistics-friendly” design significantly reduces trans-oceanic shipping volumes and eliminates the need for expensive oversized cargo handling.
Ultra-Fast Installation & Commissioning
Every compact plant is partially pre-assembled and pre-wired at the factory using quick-connect aviation plugs. This “plug-and-play” philosophy reduces on-site concrete batching plant installation time from weeks to just a few days, allowing you to start producing concrete ahead of schedule.
Superior Urban Environmental Compliance
For operations near residential zones, the containerized compact models offer ultimate protection. The steel cladding acts as a powerful acoustic barrier, drastically reducing mechanical noise. Combined with active pulse-jet dust filters, the plant operates with a zero-visible-emission footprint.
Two Paths to Compactness: Containerized vs. Foundation-Free Engineering
In modern industrial engineering, “compactness” is not a one-size-fits-all concept. Depending on your primary operational bottleneck—whether it is high international freight, strict urban environmental codes, or unstable ground conditions—we provide two distinct technical pathways to achieve a low-profile, space-saving footprint.
Path A: The HZS-C Containerized Series (Focus on Logistics & Environmental Protection)
For medium-to-large-scale urban projects (ranging from 60 m³/h to 180 m³/h), the HZS-C series represents the pinnacle of enclosed, modular engineering. Instead of constructing a massive, permanent mixing tower, the entire plant is built within standard shipping container dimensions.
- Logistics-Friendly Design: Every component—from the heavy-duty JS1000 to JS3000 twin-shaft mixers to the weighing hoppers—is designed as a modular block that fits perfectly into standard 40HQ containers. This drastically simplifies international logistics, reducing your shipping volume and cutting ocean freight costs by up to 30% to 50%.
- The Ultimate Acoustic & Dust Shield: The containerized panels are fully enclosed and can be lined with sound-dampening insulation. This structure naturally seals in all cement dust and drastically dampens the noise of high-intensity mixing, making the HZS-C series the premier choice for strict municipal environmental audits.
Path B: The FHZS Foundation-Free Series (Focus on Erection Speed & Civil Cost)
For small-to-medium-scale projects (25 m³/h to 75 m³/h), the FHZS series utilizes a highly integrated, skid-mounted design. By replacing the long inclined belt conveyor with a vertical skip hopper (bucket lift) system, we compress the horizontal land footprint by over 40%.
- Zero Heavy Foundation Work: Traditional plants require deep concrete pilings to support structural resonance. The FHZS series features a heavy-duty steel skid base frame that distributes the static and dynamic loads of the mixing process evenly. It can be installed directly on a flat, pre-compacted gravel surface, reducing your foundation construction costs by over 15%.
- Rapid Relocation Agility: Because there are no deep concrete bases to demolish, the modular structures can be disassembled, transported, and re-erected at a new site within days. This make the FHZS series the undisputed leader for temporary infrastructure, road repairs, and fast-track projects.
Compact Concrete Batching Plant Price & ROI Guide
When calculating your total project budget, the initial concrete batching plant price is only one piece of the puzzle. The true financial brilliance of a compact plant lies in the massive reduction of hidden operational and setup costs. As a direct manufacturer, we offer highly competitive factory-direct pricing to ensure your fastest possible Return on Investment (ROI).
Estimated Pricing for Compact Configurations
Based on 2026 global market standards, here is the baseline investment required for premium compact series:
- Foundation-Free Series (FHZS25 – FHZS75): Starting from $28,000 to $65,000 USD. These units utilize the highly economical skip-hopper feeding system, offering the most affordable entry point into commercial-grade concrete production for small-to-medium enterprises.
- Containerized Series (HZS-C60 – HZS-C180): Generally ranging from $60,000 to $190,000+ USD. While requiring a higher upfront investment, these heavy-duty, fully enclosed plants deliver mega-capacity output (up to 180m³/h) and absolute environmental compliance for high-profit urban contracts.
(Note: The above estimates cover base machinery costs. Final pricing depends on customized cement silo capacities and specific automation upgrades.)
Accelerating Your ROI: The “Compact” Financial Advantage
Why do smart investors choose a compact concrete batching plant over a traditional sprawling setup? Because it slashes the Total Cost of Ownership (TCO) in three critical areas:
- Drastic Logistics & Sea Freight Savings: The containerized series is engineered exactly to ISO standard dimensions. This means the plant modules act as their own shipping containers or fit perfectly into standard 40HQ units. This unique design can reduce trans-oceanic shipping costs by 30% to 50%.
- Zero Heavy Civil Engineering: The foundation-free series eliminates the need to excavate and pour massive reinforced concrete bases. By assembling directly on pre-compacted ground, investors save tens of thousands of dollars in civil works and avoid weeks of concrete curing delays.
- Reduced Land Rental Expenses: In major metropolitan areas, industrial land rent is exorbitant. By compressing the plant’s horizontal footprint by 40% (via skip-hoists or integrated designs), operators require significantly less land to run a highly profitable ready-mix business.
Combined with the material savings generated by strict ±1% precision PLC automation, most professional operators achieve full capital recovery within the first 6 to 10 months of production.

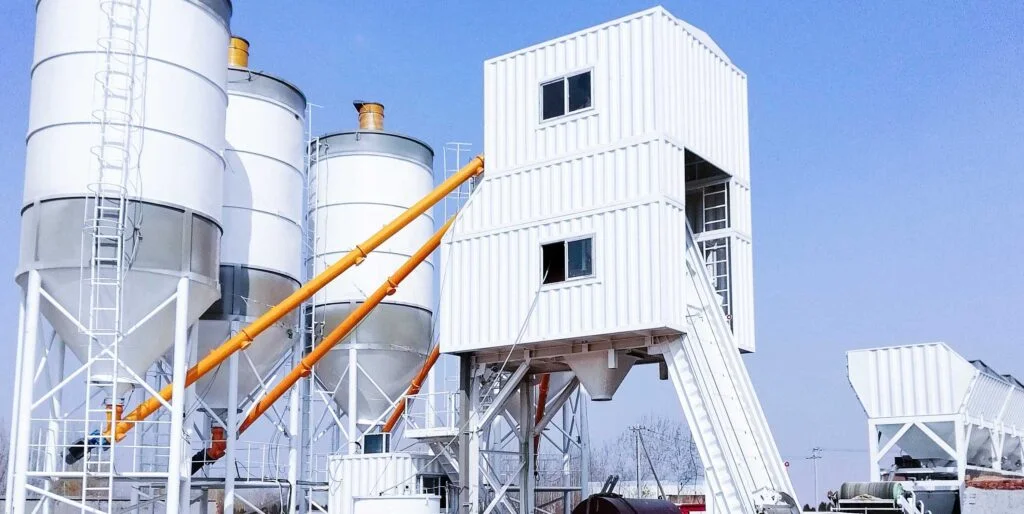

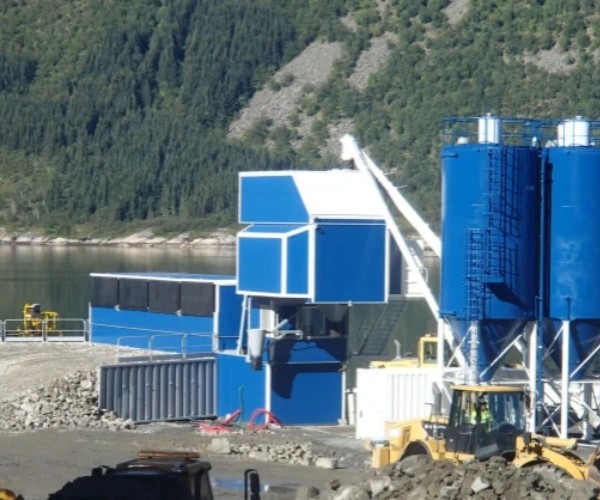

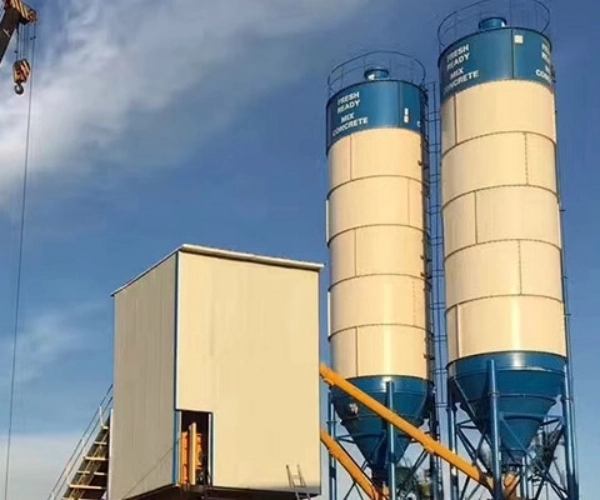

Our Compact Concrete Batch Plants In Action
Our compact range — containerized HZS-C and foundation-free FHZS plants — is built to skip deep foundations, beat the weather, and pass strict local codes. Here are two flagship installations, with more below.
Serving a large suburban expansion near the Grand Parkway, this contractor needed high output on Houston’s expansive black clay — where deep foundations crack and shift — under unpredictable Gulf storms and strict TCEQ dust limits. We delivered an HZS120C with all core modules pre-wired inside shipping containers, allowing setup on a simple compacted gravel pad instead of a deep foundation, plus a fully enclosed structure that keeps mixing through downpours. It was installed in just 15 days:
“We saved at least three weeks just on the foundation work alone. With the black clay here, that would have been a nightmare with a traditional plant. And when those spring storms hit, the plant didn’t skip a beat — the containers kept everything dry, and we haven’t had a single load rejected for bad slump.”
On the seismically active “Ring of Fire” with wet, unstable clay soils where permanent foundations crack under tremors, this contractor needed a stable, rapid-deployment plant compliant with Chile’s strict NCh433 seismic code. We engineered the FHZS-75 on a massive self-supporting steel skid frame — no deep foundation — with seismic bracing built directly into the tower and 100-ton silos. It was running in just 6 days:
“The terrain here is incredibly challenging, and with the high seismic risk, we were worried about foundation settlement. This foundation-free plant saved us — fully operational in just 6 days on a simple compacted pad, and full compliance with Chile’s strict NCh433 seismic codes gave us complete peace of mind.”
You can also explore more of our compact containerized and foundation-free plants by region:​
Why Choose CCS compact Concrete Batching Plant Manufacturer?
Since our founding over three decades ago, CCS has established itself as a premier concrete plant manufacturer trusted by top-tier contractors and ready-mix producers worldwide. We don’t just assemble equipment; we engineer highly profitable, long-lasting concrete production hubs for landmark infrastructure, high-speed railways, and major dams.
While there are many concrete plant manufacturers in the global market, CCS stands out through our unwavering commitment to heavy-duty durability, fully customized turnkey solutions, and strict international certifications (CE, ISO, SGS, BV).
Today, our global footprint spans across diverse and extremely demanding environments. We proudly serve clients in advanced regions like Australia and South Korea, while powering massive urbanization and infrastructure projects throughout Southeast Asia, the Middle East, Central Asia, and Africa.
As a full-service organization, our commitment to your success extends far beyond the sale. We provide an end-to-end support system designed to maximize your Return on Investment (ROI).
Pre-Sales Engineering & Investment Consulting
Expert Installation & Operational Training
24/7 After-Sales Support & Maintenance
💡Expert Insights: Navigating Mobile Concrete Plants
What is a Compact Concrete Batching Plant?
A compact concrete batching plant is an innovative, space-saving production facility engineered for maximum output within a minimal physical footprint. Utilizing advanced modular design principles, this system compresses the entire concrete manufacturing process—including aggregate batching, precision weighing, conveying, mixing, and intelligent control—into a highly integrated unit.
Unlike traditional, sprawling stationary plants that require extensive land area and deep concrete foundations, compact plants feature foundation-free skid-mounted bases or fully enclosed containerized structures. While delivering the exact same high-intensity mixing power and commercial-grade concrete quality, its unique value lies in overcoming severe spatial constraints, slashing civil engineering costs, and minimizing international shipping freight. It is the ultimate high-efficiency solution for contractors operating in tight quarters.
Wide-Ranging Applications: Conquering Spatial Constraints
As an ultra-efficient, highly adaptable production system, our compact batching plant is designed to thrive in engineering environments where standard equipment simply cannot fit:
- Congested Urban & Metro Construction:
Ideal for dense city centers where industrial land is scarce and expensive. The containerized design provides exceptional dust and noise suppression, ensuring strict compliance with municipal environmental codes while supplying critical infrastructure projects like subways and high-rises. - Restricted Industrial Precast Factories:
The preferred solution for indoor or space-limited precast element manufacturing. Its low-profile architecture allows the plant to fit inside existing workshop buildings, delivering zero-slump, high-strength concrete directly into casting molds. - Remote Projects with High Transport Costs:
Because the entire plant is modularly engineered to fit perfectly into standard shipping containers, it is the most cost-effective choice for overseas mega-projects or island construction where exorbitant ocean freight and heavy crane rentals would otherwise destroy project budgets.
How Does a Compact Concrete Batching Plant Work? (Working Principle)
Step 1 Integrated Aggregate Batching
Aggregates such as sand and crushed stone are loaded into space-saving, multi-compartment storage bins. Upon receiving the command from the control room, pneumatically controlled gates discharge the exact required amount of materials onto high-precision weighing sensors beneath the bins.
Step 2 Space-Saving Material Conveyance
This is where the compact design shines. The weighed aggregates are transferred to the central mixer using either a vertical skip-hoist bucket or an internal, high-angle inclined belt conveyor. Both methods are engineered to move materials rapidly upward while demanding up to 40% less horizontal land area than traditional plants.
Step 3 Simultaneous Powder & Liquid Dosing
While aggregates are moving, cement and fly ash are conveyed from the silos via sealed screw conveyors into dedicated weighing hoppers above the mixer. Simultaneously, water and chemical additives are pumped into liquid scales. All components are measured with a strict ±1% tolerance, managed by an automated difference compensation algorithm to ensure structural integrity.
Step 4 High-Intensity Compulsory Mixing
All precisely measured dry and wet ingredients are dropped into the heavy-duty JS-Series twin-shaft mixer (or planetary mixer). The high-chromium blades vigorously agitate the materials in a confined, fully enclosed space. This high-shear action guarantees a perfectly homogeneous and consistent concrete mixture within a short cycle time (typically 60 seconds).
Step 5 Automated Discharge & Dispatch
Once the mixing is complete, the pneumatic discharge gate opens. The fresh concrete drops directly into a transit mixer truck or a concrete pump hopper. The smart PLC system instantly records the batch data for quality audits and readies the plant for the next uninterrupted cycle.
Compact Site Layout & Footprint Optimization
Optimizing your site layout is the key to maximizing daily concrete output when operating in tight spaces. Traditional belt-conveyor plants are exceptionally long (requiring up to 50 meters in length), which is often a financial and physical impossibility in congested urban areas. Our compact series resolves this by compressing the entire material flow into a highly integrated, space-saving footprint.
â‘ Estimating the Area Required for a Compact Plant
For our compact and foundation-free configurations, you can achieve a professional, commercial-grade ready-mix setup within an incredibly restricted site area:
- FHZS Series (Small to Medium): The main mixing structure of an FHZS-25 or FHZS-50 requires a site area of only 12m x 15m (or 180 square meters). By utilizing a vertical skip hoist (bucket lift), we cut the required horizontal land footprint by over 40% compared to standard belt models.
- HZS-C Series (Large Capacity): Even our massive HZS-120C and HZS-180C containerized plants are designed to be space-efficient. By integrating the aggregate batching bins (up to 20m³ per bin) and the conveyor belt within standard containerized frames, we allow for maximum production volume with minimal horizontal spread.
â‘¡ Managing the Compact Concrete Batch Plant Diagram
A professional concrete batch plant layout must ensure that compact size does not lead to traffic bottlenecks. We design customized site diagrams based on two primary configurations:
- Linear (In-Line) Compact Layout: The aggregate batcher, conveyor system, and mixing tower are aligned in a straight line. This is ideal for narrow, long plots of land (e.g., alongside a highway corridor or a retaining wall).
- L-Shaped Compact Layout: The aggregate batching system is positioned at a 90-degree angle to the mixing tower. This modular flexibility ensures the plant can fit into unconventional corner lots or tight industrial yards, leaving maximum space for transit mixer truck maneuvering.
â‘¢ Site Utility & Foundation Constraints
- No Heavy Poured Foundations: For our FHZS series, you can bypass the tedious, multi-week process of pouring deep reinforced concrete foundations. The heavy-duty steel skid base frame distributes weight evenly. All you need is a flat, pre-compacted gravel or concrete surface, allowing you to start production weeks ahead of schedule.
- Pre-Connected Plumbing & Electricals: All electrical lines are factory pre-installed in EMT conduits and tested before shipping. The quick-connect fittings for water and pneumatic systems ensure hassle-free site connections, minimizing the risk of setup errors.
Environmental Compliance in Urban Zones
Operating a concrete batching plant in or near a densely populated city presents severe regulatory challenges. Local municipalities and environmental agencies (such as the EPA) enforce strict limits on airborne particulate matter and industrial noise. Standard open-frame batching plants often fail these audits, resulting in heavy fines or immediate stop-work orders.
Our Containerized Compact Series (HZS-C) is specifically engineered to eliminate these risks, offering an “eco-friendly” footprint through two advanced containment strategies:
Active Pulse-Jet Dust Suppression
Cement and fly ash loading generates massive amounts of microscopic dust.
- The Technology: Our containerized plants feature a fully enclosed weighing and mixing zone operating under negative pressure. We install high-efficiency pulse-jet baghouse filters directly onto the cement silos and aggregate weigh hoppers.
- The Result: This system actively captures 99.9% of airborne particles before air is vented outside, guaranteeing a zero-visible-emission operation that easily satisfies the strictest municipal air quality codes.
Acoustic Cladding for Noise Mitigation
The friction of aggregate loading and the high-speed motors of a twin-shaft mixer generate decibel levels that are unacceptable in residential corridors.
- The Technology: Instead of exposed steel frames, the entire main mixing tower of the HZS-C series is enveloped in structural container panels lined with high-density rock wool insulation.
- The Result: This heavy-duty acoustic cladding absorbs and drastically dampens mechanical noise and vibration. By keeping boundary noise levels below 65 dB, operators can confidently run high-volume production cycles without disturbing surrounding neighborhoods or triggering noise complaints.
How to Choose a Reliable Compact Concrete Plant Manufacturer?
The global market is crowded with equipment suppliers, but producing a truly efficient compact concrete batching plant requires specialized engineering. When shortlisting a compact concrete batching plant manufacturer, your procurement team should evaluate suppliers based on the following three technical benchmarks:
(1) Proven Modular & Pre-Wired Capabilities
A trading company will ship you loose parts. A true, high-tier manufacturer will factory-assemble and pre-wire the entire control and pneumatic system before shipping. This “plug-and-play” philosophy is what guarantees rapid 3-to-7-day installation on your job site. Always ask potential concrete batching plant suppliers for videos of their pre-assembly process.
(2) Certified Structural Engineering
Foundation-free plants bear immense dynamic loads during the mixing cycle. The supplier must demonstrate that their heavy-duty steel skid frames are designed and tested to absorb this vibration without a concrete base. Look for facilities audited by independent bodies like SGS or BV, ensuring adherence to strict ISO manufacturing protocols.
(3) Uncompromising Component Brands
To ensure the longevity of an automatic compact concrete batching plant, the core electronics and pneumatic valves must be globally sourced. Ensure the manufacturer explicitly guarantees the use of internationally recognized brands (such as Siemens or Schneider) for their PLC control systems, which guarantees local spare parts availability anywhere in the world.
FAQ
Absolutely. The term “compact” refers to the plant’s minimized land footprint, not its capacity. Our containerized HZS-180C, for example, produces a massive 180 m³/h. It uses an integrated belt conveyor hidden within the container frame to achieve industrial-level, continuous commercial output in a highly restricted space.
A mobile plant is built onto a wheeled chassis and is towed by a tractor truck—ideal for constant relocation every few months. A foundation-free compact plant lacks wheels but sits on a heavy-duty steel skid base. It is slightly less mobile but offers higher stability and a more affordable price tag for semi-permanent projects.
No. A professionally designed compact mix concrete batching plant features strategic access panels, galvanized maintenance walkways, and dedicated inspection hatches. Even within the containerized series, there is ample, safe room for personnel to lubricate the twin-shaft mixer and inspect load cells.
