HZS240 Concrete Batching Plant
Durable | Precise | PLC control
At the apex of industrial concrete production lies the HZS240 stationary batching plant. This is not merely a machine; it is a high-performance industrial facility engineered to power the world’s most demanding mega-projects. With a reliable output of 240 cubic meters per hour, the HZS240 is the definitive choice for national-scale infrastructure, including major dams, international airports, high-speed railway networks, and large-scale urban commercial hubs.
As a premier manufacturer with over 32 years of engineering mastery, CCS has developed the HZS240 concrete batching plant to solve the challenges of massive, uninterrupted pours. We understand that in mega-infrastructure, stability is everything. Our HZS240 systems are built with reinforced structural steel and advanced synchronization logic, ensuring that your production remains continuous, consistent, and fully compliant with the most rigorous international engineering standards.
$50,000~$200,000
HZS240 Concrete Batching Plant Supplier
The HZS240 concrete mixing plant is a large, stationary concrete production equipment, widely used in large-scale infrastructure projects such as highways, large bridges, hydropower stations, airports and high-rise buildings, an ideal choice for commercial concrete mixing stations and large-scale engineering projects.
Production Capacity
220~240m ³/h
Type
Belt Feeding
Concrete Mixer
MAO6000/4000 Twin Shaft Mixer
Batching Machine
PLD6400 Batching Machine
Weighing System
Cement; Water; Additive
Control System
Full Automatic Centralized Control System
After-Sale Service
Engineers available to service machinery overseas, Online support, Video technical support, Field installation, commissioning and training
Origin
CCS/China
Applications
· Mega-Dams & Hydro-Power Projects
· International Airports & Seaport Terminals
· High-Speed Railway (HSR) Networks
· Nuclear Power & Specialized Energy Plants
· Centralized Mega-City RMC Hubs
$50,000~$200,000
HZS240 Concrete Batching Plant Supplier
The HZS240 concrete mixing plant is a large, stationary concrete production equipment, widely used in large-scale infrastructure projects such as highways, large bridges, hydropower stations, airports and high-rise buildings, an ideal choice for commercial concrete mixing stations and large-scale engineering projects.
Production Capacity
220~240m ³/h
Type
Belt Feeding
Concrete Mixer
MAO6000/4000 Twin Shaft Mixer
Batching Machine
PLD6400 Batching Machine
Weighing System
Cement; Water; Additive
Control System
Full Automatic Centralized Control System
After-Sale Service
Engineers available to service machinery overseas, Online support, Video technical support, Field installation, commissioning and training
Origin
CCS/China
Applications
· Mega-Dams & Hydro-Power Projects
· International Airports & Seaport Terminals
· High-Speed Railway (HSR) Networks
· Nuclear Power & Specialized Energy Plants
· Centralized Mega-City RMC Hubs

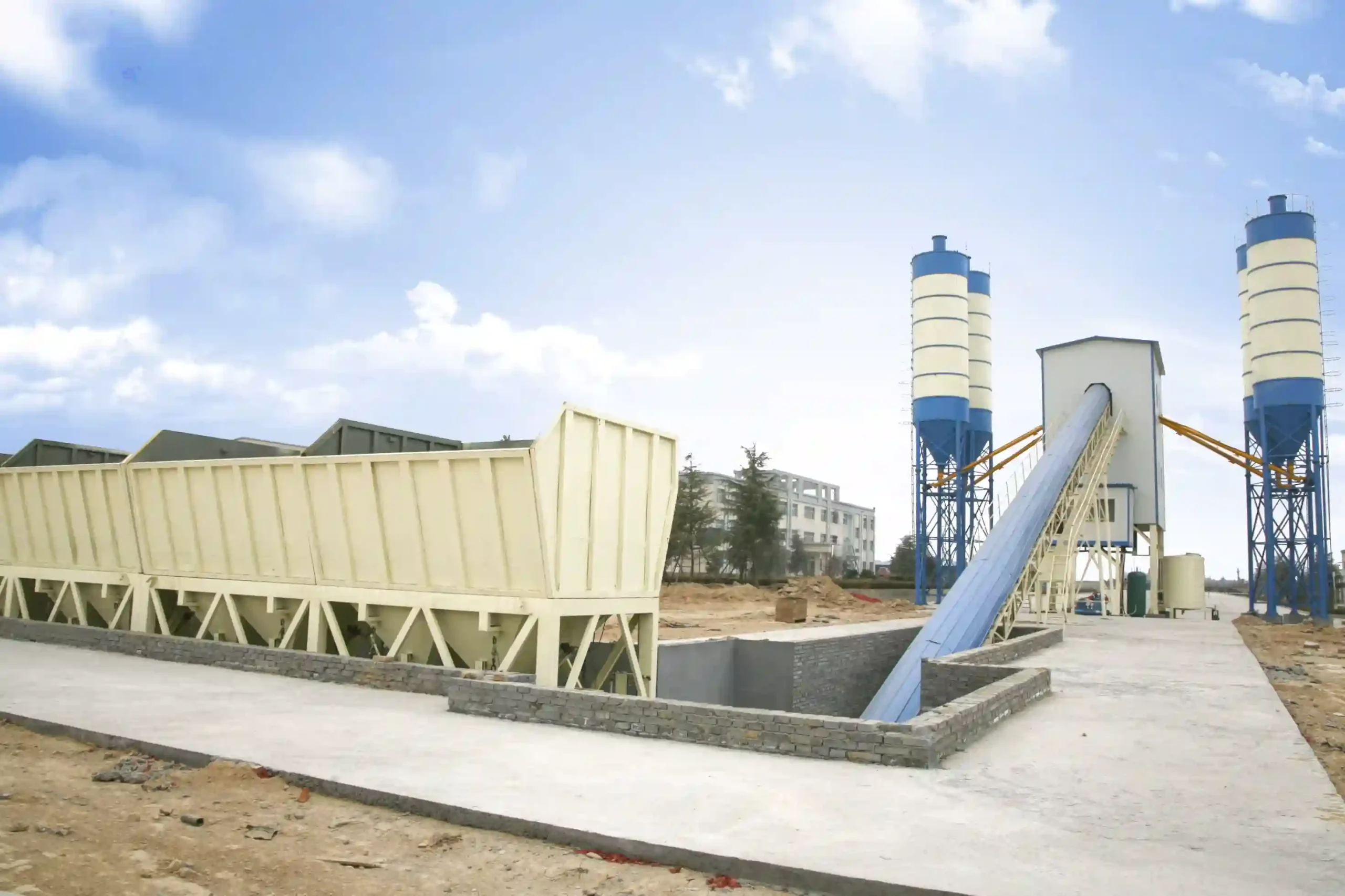

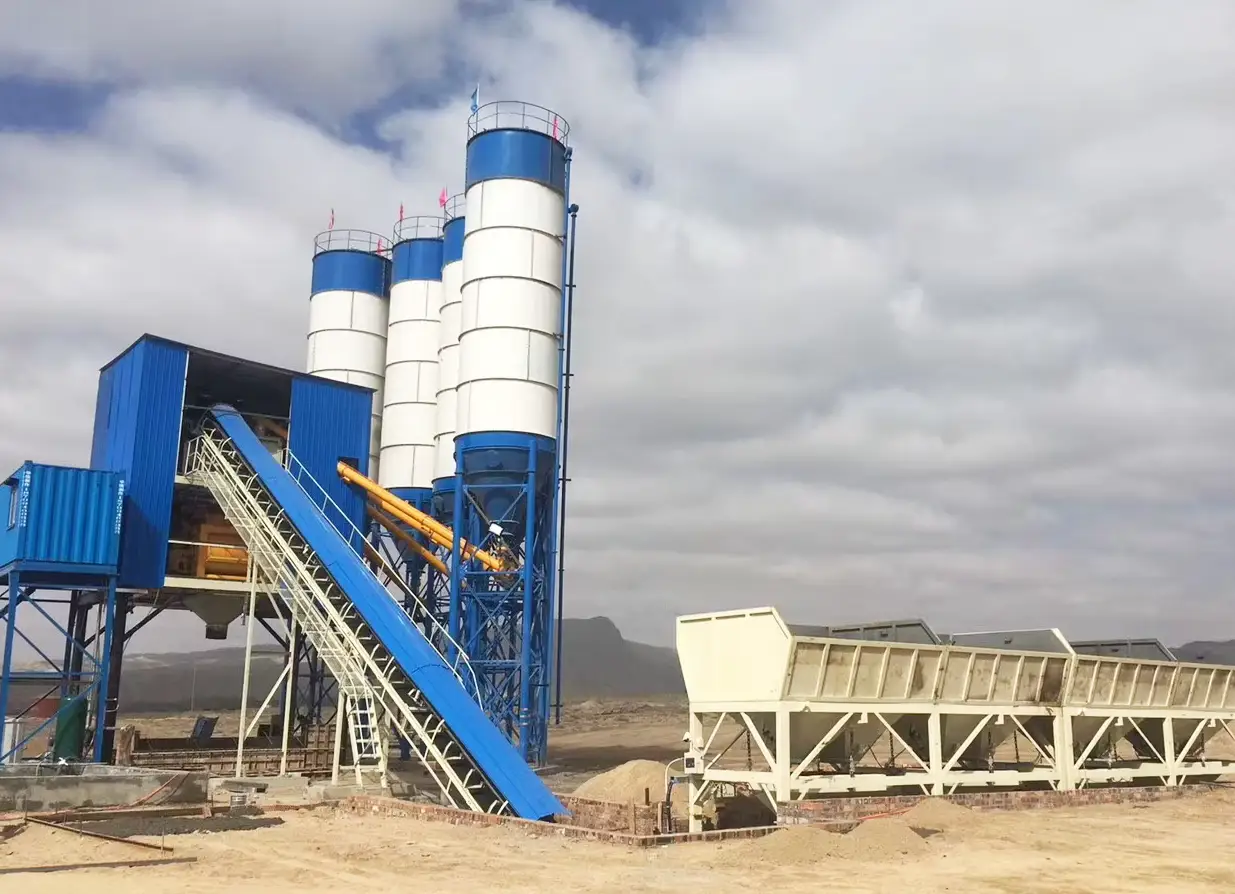

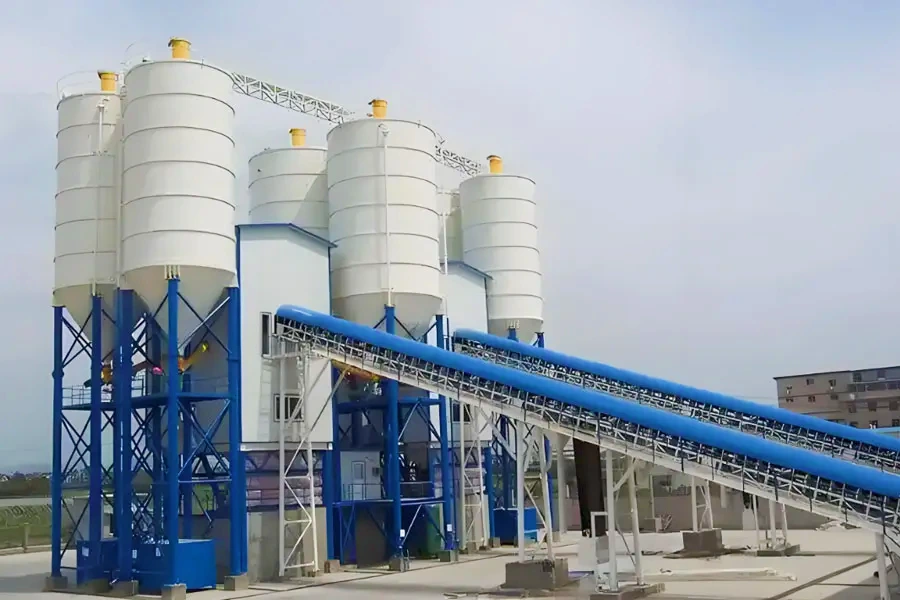

HZS240 Concrete Batching Plant For Sale
The HZS240 concrete batching plant features a massive theoretical production capacity of 240 cubic meters per hour, with actual output generally ranging between 180m³ to 210m³ per hour, making it the definitive choice for large-scale industrial projects and commercial ready-mix hubs. Equipped with a high-intensity MAO6000/4000 heavy-duty twin-shaft mixer and a high-precision aggregate batching system, it ensures the production of perfectly homogeneous and high-specification concrete. This industrial facility consists of a central mixing system, a high-throughput conveying system (including inclined belt conveyors and screw conveyors), an independent weighing system, an intelligent PLC control system, and a large-capacity storage system (multiple cement silos). It can be modularly installed and debugged to meet complex project demands, delivering massive production capacity and unyielding operational stability for the world’s most demanding construction environments. CCS can customize solutions according to your needs.

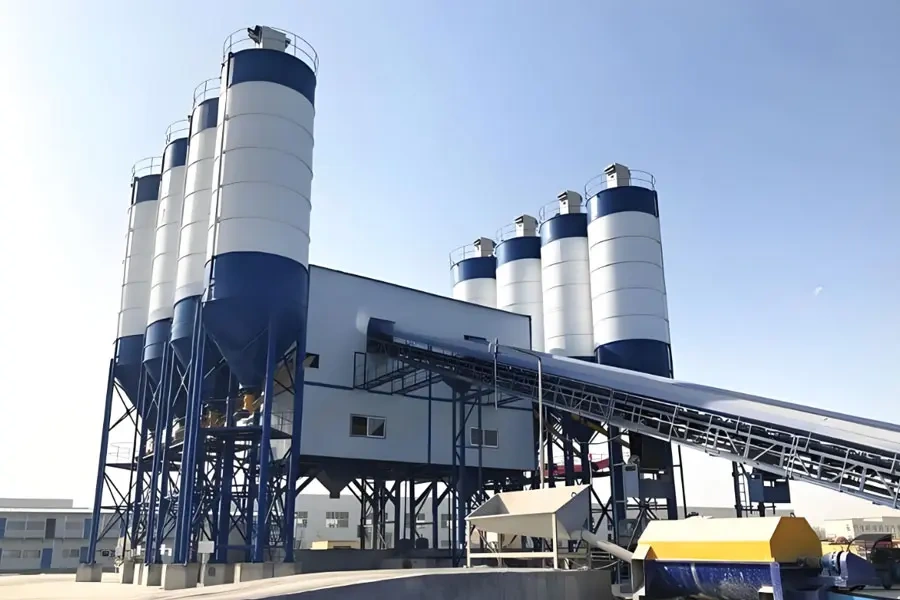

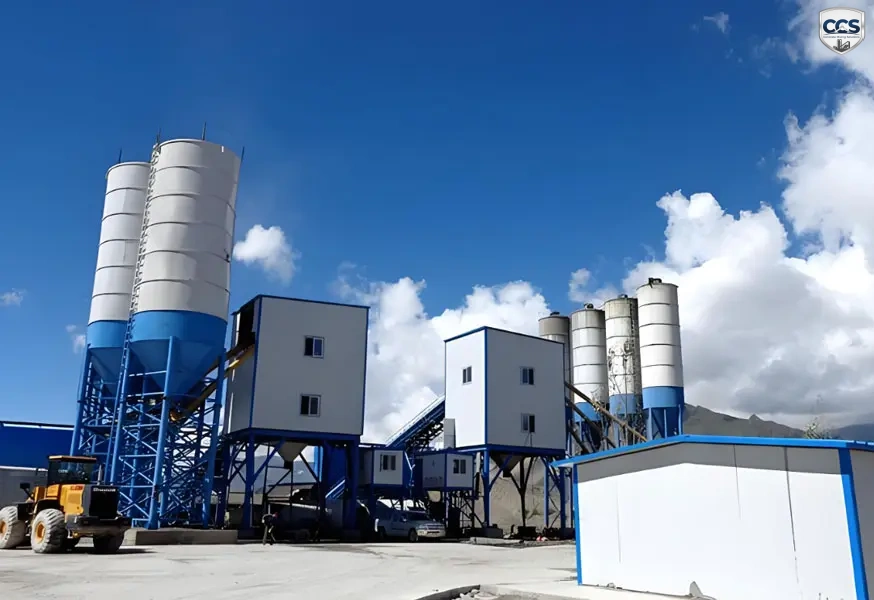

The CCS HZS240 concrete batching plant is an industrial-scale powerhouse engineered for the world’s most demanding mega-projects and high-volume commercial ready-mix operations. As our flagship stationary model, it delivers a massive theoretical output of 240m³/h, making it the definitive choice for high-intensity, continuous concrete production where reliability is non-negotiable.
At the heart of every HZS240 is the high-performance MAO6000/4000 twin-shaft compulsory mixer. This heavy-duty unit produces 4 cubic meters of perfectly homogeneous concrete every single batch, ensuring that even the most complex, high-specification concrete grades are produced with absolute consistency. Its robust design is optimized for national-scale infrastructure projects, including international airports, high-speed railways, major bridge decks, and hydraulic engineering (dams).
Beyond raw power, the HZS240 integrates sophisticated intelligence. Its fully automated PLC control system manages intricate production plans and hundreds of diverse formulas with surgical precision. Combining modular engineering for rapid setup with advanced environmental protections, the CCS HZS240 delivers the unyielding efficiency and intelligent operation required to drive your large-scale construction goals into the future.
Parameters of HZS240 concrete batching plant
To deliver a consistent 240m³/h output in the world’s most challenging environments, every parameter of the CCS HZS240 is optimized for heavy-duty industrial performance. From the massive MAO6000/4000 mixing unit to the high-throughput belt system, these concrete batching plant specifications define the gold standard for mega-project reliability.
| Type | Specifications | ||
| Theoretical production(m³/h) | 240 m³/h (Industrial Mega-Scale) | ||
| Concrete mixer | Type | MAO6000/4000 twin-shaft compulsory mixer | |
| Power(KW) | 150 kW (Total Powerhouse Efficiency) | ||
| Discharging capacity(L) | 4000 Liters (4.0m³ per batch) | ||
| Aggregate size(Pebble/Macadam)(mm) | 150 | ||
| Aggregate Bin volume(m³) | 2/3/4×40 | ||
| Belt conveying Capacity(t/h) | 900 t/h (High-Speed Throughput) | ||
| Weighing Accuracy | Aggregate (KG) | 9000Kg ±2% | |
| Cement(KG) | 3000Kg ±1% | ||
| Fly ash(KG) | 1500Kg ±1% | ||
| Water (KG) | 1000Kg ±1% | ||
| Additive(KG) | 100Kg ±1% | ||
| Discharging height(M) | 4.1m | ||
Parameters are for reference only, please consult us for details.

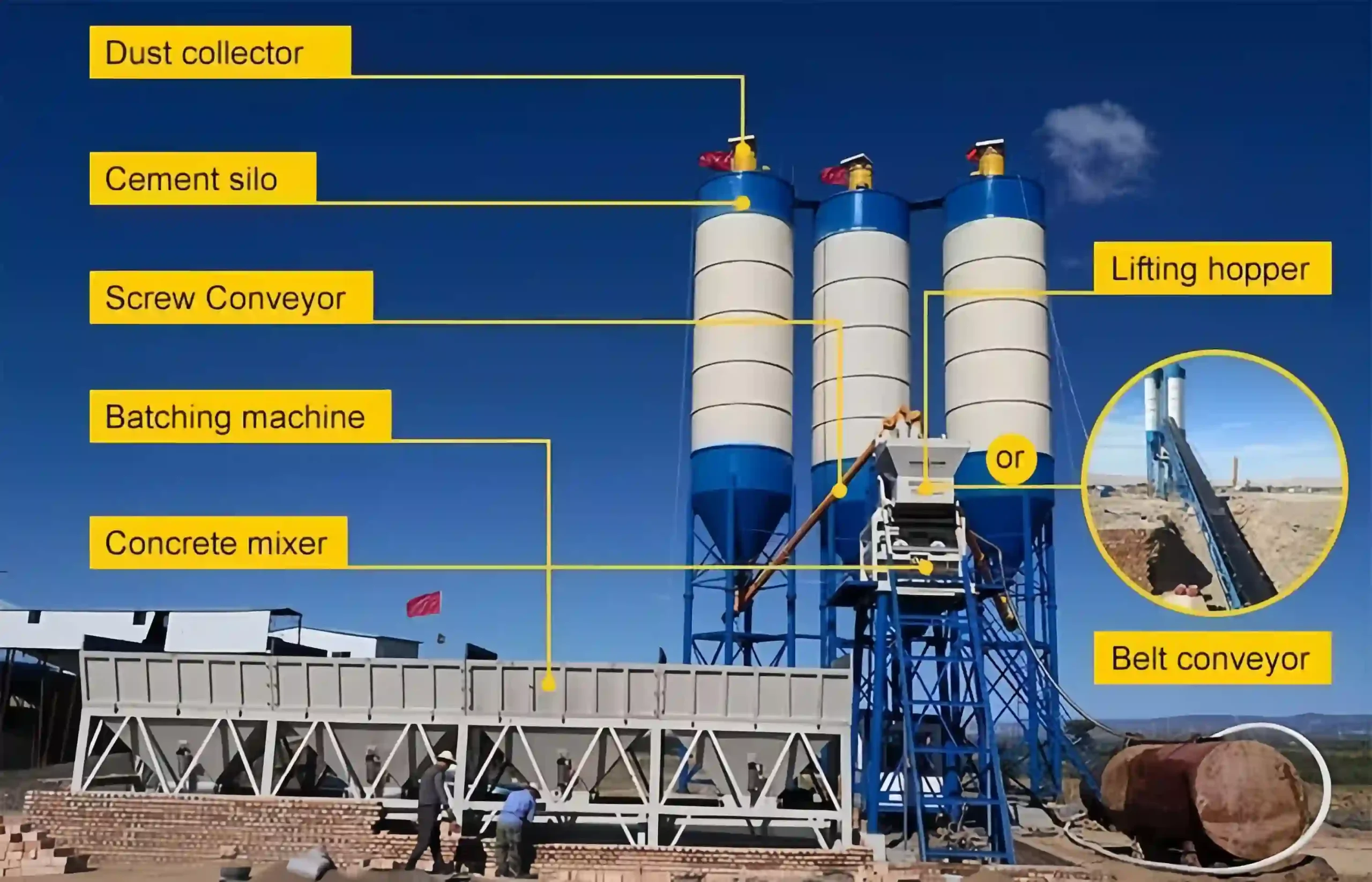

Components Of HZS240 Concrete Batching Plant
The main components of HZS240 concrete batching plant include batching machine, aggregate conveying system, mixing system, weighing system, control system, storage system, etc.

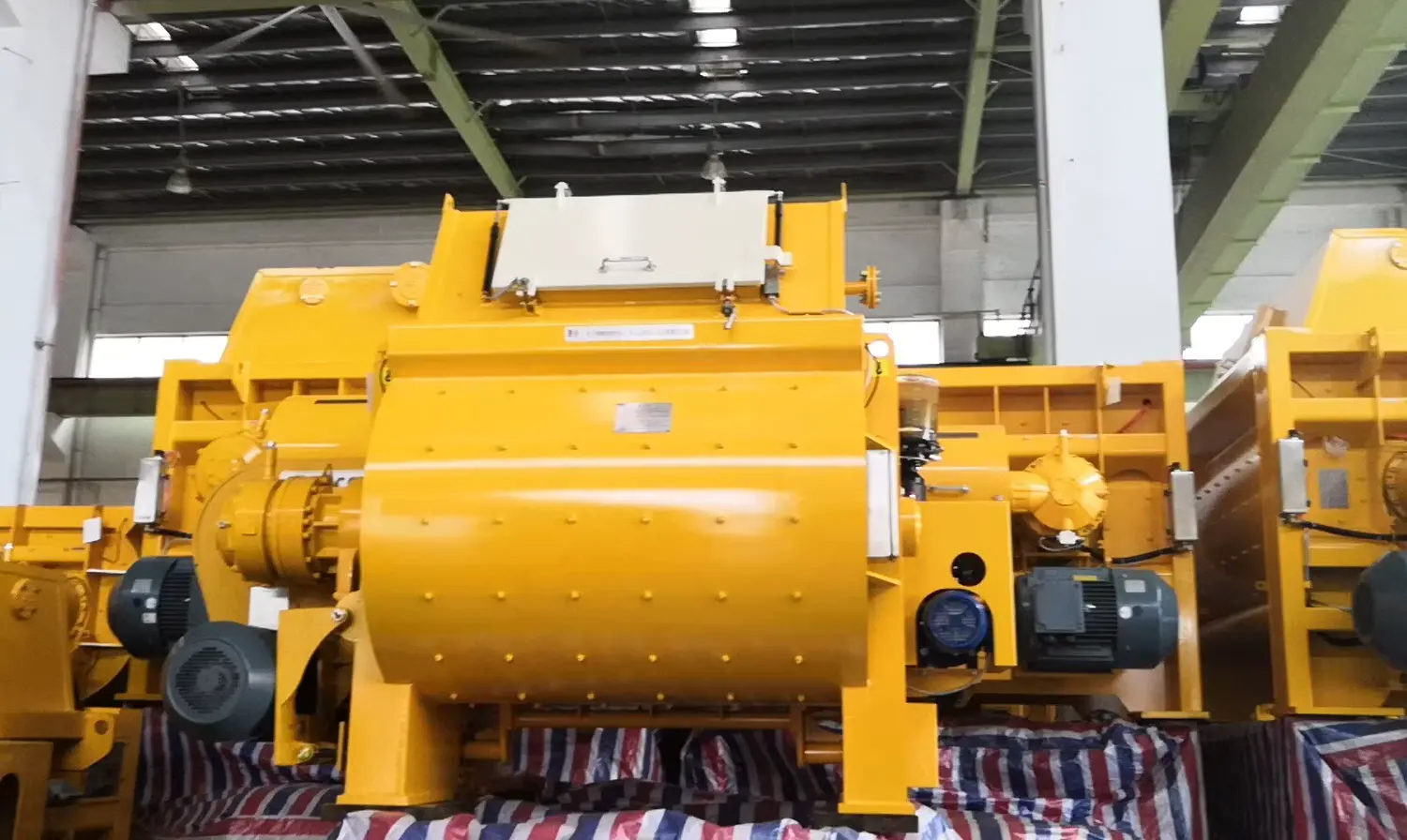

Mixer
Horizontal twin-shaft compulsory mixer has strong mixing ability, it can mix the materials evenly and effectively. It can mix concrete with different slumps and raw materials ratio. Its mixing blade and lining board are made of high chromium wear-resistant alloy. External shaft end support and special shaft seal ensure the long service life of the mixer. Planetary type mixer as an optional choice.

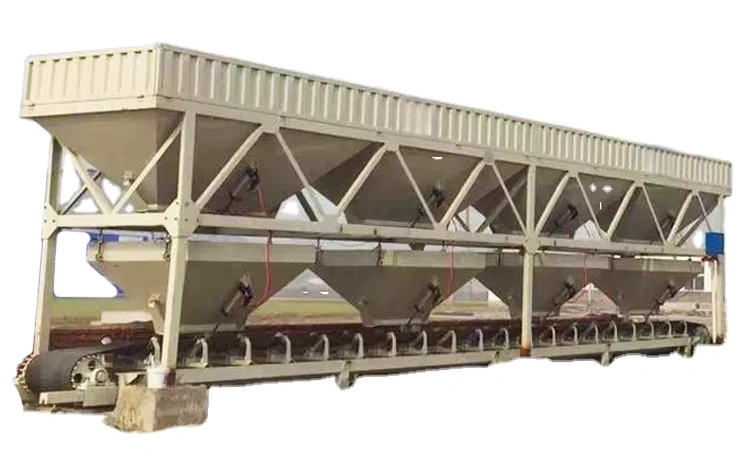

Batching Machine
The batching machine is divided into different silos, which can store cement, sand, aggregates, and other ingredients separately. The automated batching system ensures the accuracy of raw material dispensing.
Aggregate Conveying System
After weighing, the aggregate is sent to the stationary concrete mixer by the lifting hopper or belt conveying system.

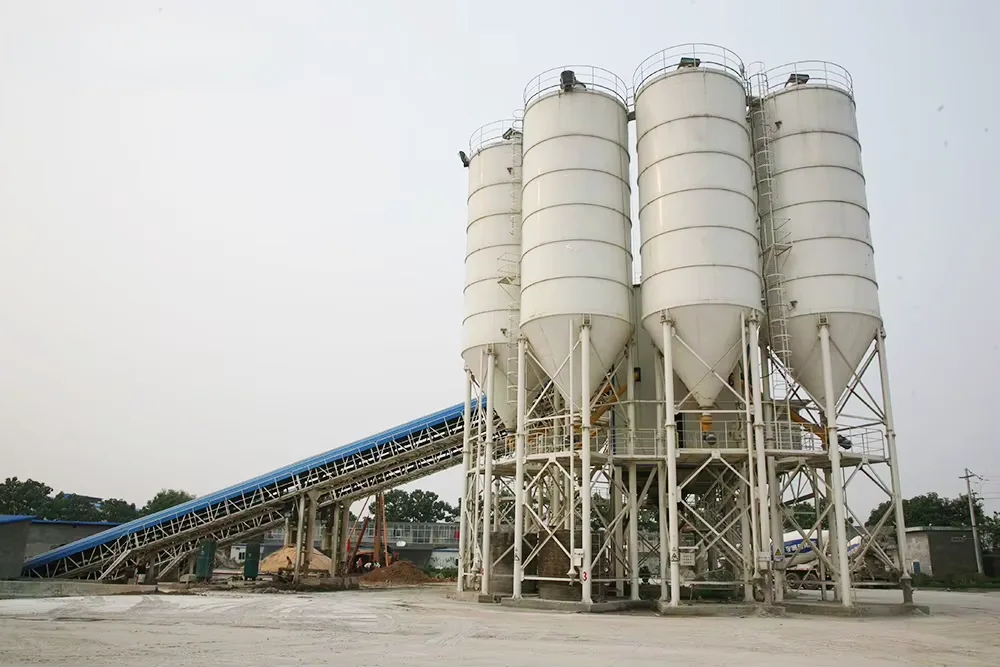

Material storage system
Used for storing aggregates, powdered materials (such as cement, fly ash), additives, etc. required for concrete production. Reasonable design, ensuring continuous and stable material supply, and improving production efficiency.
Including cement silo, aggregate silo, powder silo, etc., used to store different raw materials.
Screw Conveyor
Engineered for the dust-free and high-speed transport of cement and fly ash, our screw conveyors ensure a continuous and uniform material flow from silos to the weighing system.
Weighing System
It has the function of automatic difference compensation, aggregates, cement, water fly ash and additive all has their own weighing system, and the results are accurate.
Control system
Full automatic computer control. There are 2 models. Manual and Auto.
1.Accurate. The whole operation is controlled by automatic system, thus it performances more accuracy;
2.Easy operation. Equipped with automatic control, batching and weighing system, HZS240 concrete plant is easy to operate.
3.All the electric elements are Schneider Brand.
HZS240 Concrete Batching Plant Working Principle
The operation of the HZS240 concrete mixing plant is an orchestration of high-volume logistics and surgical precision. Controlled by an advanced PLC “nerve center,” the system executes five synchronized stages to produce up to 210m³ of high-grade concrete every hour.
Step 1: Mega-Scale Aggregate Batching
Based on the selected high-specification recipe, the high-capacity aggregate batching system releases sand and stone (up to 150mm in size) onto the weighing sensors.
High-Load Precision: The system handles up to 9000kg of aggregate per cycle. Utilizing multi-speed discharge gates, it achieves rapid filling followed by precise “jogging” to ensure a strict ±2% tolerance.
Step 2: High-Speed Belt Conveying & Buffering
Efficiency is maintained through a continuous flow model. The weighed aggregates travel up a heavy-duty inclined belt conveyor with a throughput of 900 tons per hour.
Intermediate Waiting Hopper: To eliminate downtime, the aggregates are stored in a large waiting hopper (buffer bin) located directly above the mixer. This allows the plant to weigh the next batch while the current one is still mixing, ensuring the MAO6000/4000 mixer is never idle.
Step 3: Triple-Powder & High-Volume Liquid Dosing
Simultaneously, the powder and liquid systems are in full motion:
Independent Scales: Multiple screw conveyors transport cement and fly ash into dedicated weighing hoppers (up to 3000kg capacity). Pressurized pumps deliver water and additives into liquid scales. All “fine materials” are measured with a strict ±1% accuracy to guarantee structural integrity.
Step 4: MAO6000/4000 High-Intensity Mixing
Once the PLC confirms all weights, the discharge gates open simultaneously, dropping all ingredients into the MAO6000/4000 twin-shaft compulsory mixer.
Vortex Action: The 150kW high-torque motors drive high-chromium blades to create a 3D “vortex” mixing action. This ensures that even the driest RCC or high-strength concrete reaches perfect homogeneity within 60 seconds.
Step 5: Rapid Discharge & Environmental Protection
The finished concrete is discharged via a massive pneumatic gate into a waiting transit mixer.
Zero-Dust Operation: Throughout the discharge, integrated pulse-jet dust collectors maintain negative pressure, capturing any airborne particles and keeping the site compliant with strict environmental ordinances.
Advantages Of The HZS240 Concrete Batching Plant
High-Intensity Vortex Mixing Technology
Utilizing the MAO6000/4000 heavy-duty mixer, we employ an interrupted spiral blade arrangement. This create a three-way “boiling type” mixing action, increasing mixing efficiency by 20% compared to standard designs and ensuring perfect homogeneity in record time.
Patented Floating Shaft-End Seals
To eliminate the #1 cause of mixer failure, our HZS240 features a multi-layer floating sealing system combined with automated centralized lubrication. This ensures zero leakage of cement slurry into the bearings, even during 24/7 continuous operation.
Self-Learning Intelligent Control System
Powered by Siemens PLC, our software features a self-learning algorithm for weighing parameters. It automatically detects and compensates for “material drop” errors in real-time, maintaining a strict ±1% accuracy for cement and water without manual intervention.
Fully Enclosed Eco-Friendly Tower
Designed for urban and sensitive environments, the entire mixing tower and belt system are cladded with noise-dampening sandwich panels. Combined with pulse-jet dust collectors, our HZS240 achieves zero visible dust emissions and complies with the strictest global noise ordinances.
Rapid Modular Unitized Construction

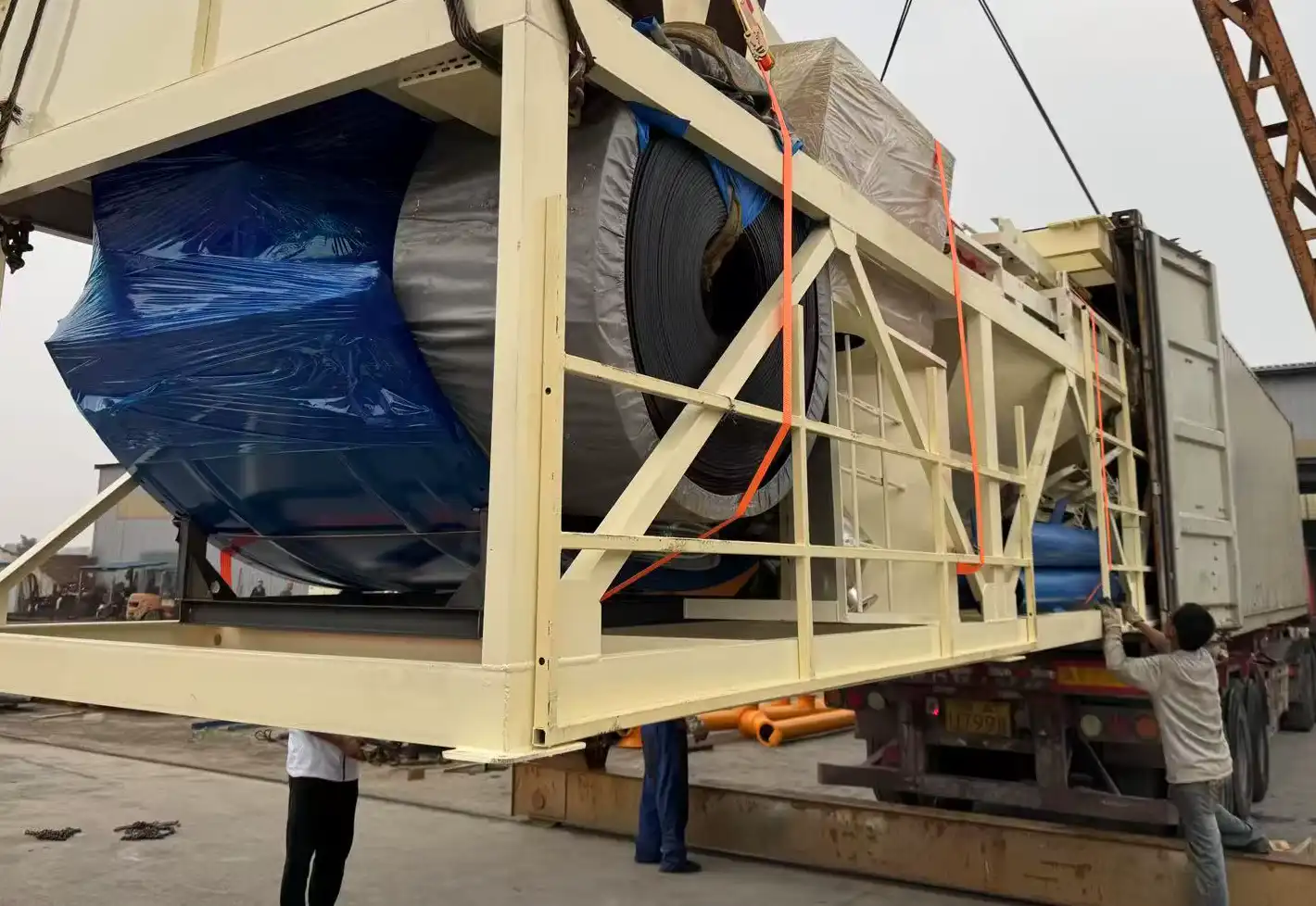

Every major unit is engineered to match standard container sizes for cost-effective sea freight. All electrical and pneumatic lines are pre-installed and factory-tested with quick-connect aviation plugs, reducing your on-site installation workload by up to 40%.
Industrial-Grade Accurate Measurement
Equipped with high-precision Toledo load cells, the plant handles massive aggregate loads (up to 9000kg per batch) with surgical precision. The multi-speed dosing technology ensures rapid filling followed by “jogging” for exact target weight fulfillment.
High Site Adaptability & Flexible Layout
No matter your site constraints, we provide custom configurations. The inclined belt can be set at 20°, 28°, or 45°, and the batching station can be arranged in “I” or “L” shapes to maximize your land usage and optimize transit mixer traffic flow.
Heavy-Duty Reliability & Minimal Maintenance
Built with high-strength structural steel and equipped with high-pressure automated cleaning systems for the mixer, the HZS240 is designed for a 15+ year operational life with remarkably low lifecycle maintenance costs.
Environmental Compliance: Engineering for Noise, Emissions & Regulatory Permits
Operating a 240m³/h facility requires more than just mechanical power; it demands strict environmental stewardship to meet the world’s most rigorous concrete batching plant regulations. At CCS, we engineer our mega-plants to ensure that high-volume production does not come at the cost of environmental integrity.
Our HZS240 environmental package is designed to help you secure your concrete batching plant environmental permit effortlessly:
Advanced Dust Emission Control
Handling up to 3,000kg of cement every batch creates massive potential for airborne particles.
The Solution: We utilize high-efficiency Pulse-Jet Dust Collectors integrated into every cement silo, hopper, and the central mixer. The entire plant operates under negative pressure, ensuring that 99.9% of dust is captured and recycled back into the production cycle. This aligns with the strictest global air emissions standards.
Urban Noise Level Mitigation
A massive twin-shaft mixer and 900t/h belt system can be loud, which is often a barrier for plants located near residential or commercial zones.
The Solution: CCS provides total environmental enclosure. The main mixing tower and belt conveyors are cladded with sound-insulated sandwich panels. This “Silent Power” engineering significantly reduces concrete batch plant noise levels, allowing you to operate 24/7 without violating local municipal ordinances.
Zero-Waste Water Recycling
Modern mega-projects, especially dams and tunnels, often demand a zero-discharge site.
The Solution: We offer optional integrated concrete reclaimers and filter presses. This system separates sand and gravel from washout water, allowing for 100% water recycling. It not only saves you money on utility bills but also satisfies the most demanding sustainability audits.
The high throughput of the HZS240 demands more than just basic controls; it requires an intelligent nerve center to orchestrate hundreds of thousands of material movements daily. CCS equips the HZS240 with industry-leading concrete batching computer systems that transform raw data into a seamless, high-profit operation.
Our concrete batch plant software focuses on three core pillars of mega-plant management:
Intelligent “Nerve Center”: Advanced Concrete Batching Computer Systems & Software
Precision Dosing & Automatic Error Correction
When producing C50+ or specialized mass concrete, a 1% error in additives can be disastrous.
- The Logic: Our software features Advanced Drop Compensation and high-frequency load-cell sampling. If the system detects a weight deviation, it automatically adjusts the gate timing for the next batch in real-time.
- Dynamic Moisture Control: Integrated moisture sensors constantly feed data to the PLC, allowing the software to instantly adjust the water-cement ratio, ensuring every batch meets the structural certifications required for airports and dams.
Comprehensive ERP Integration & Fleet Management
Managing a fleet of 30-50 transit mixers under a single HZS240 is a massive logistical challenge.
The Software: Our concrete batch plant software features open API architecture, allowing for seamless integration with your existing ERP system. You can track exact material consumption per client, monitor real-time truck loading times, and generate detailed “Daily Production Reports” to prevent material loss and optimize your ROI.
24/7 Remote Diagnostics & Predictive Maintenance
In mega-projects, every hour of unscheduled downtime costs thousands of dollars.
The Feature: CCS utilizes cloud-based remote support. Our factory engineers can log into your HZS240’s system anywhere in the world to perform software audits, diagnose pneumatic valve lags, or assist with concrete plant calibration. This ensures your plant is never “down” while waiting for a technician to fly to your site.
Engineered for Endurance: Heavy-Duty Mixer & Plant Parts
At the heart of the HZS240 is the massive MAO6000/4000 twin-shaft mixer, a unit designed for unyielding performance under the most abrasive conditions. Because this plant is built for large-scale infrastructure, we utilize “over-built” components to ensure your operation remains continuous and maintenance costs remain predictable.
Our strategic focus on high-quality mixer and plant parts includes:
High-Chromium Wear Protection
Processing up to 150mm aggregate daily requires extreme surface hardness.
- The Component: Every CCS HZS240 utilizes in-house cast High-Chromium Alloy (up to 26% Cr) for the mixing blades and internal liners.
- The Benefit: These premium mixer plant parts last 30% to 50% longer than standard cast iron. In a 240m³/h operation, this means hundreds of additional production hours between liner replacements, directly boosting your monthly profit margins.
Quadruple Shaft-End Seals
The number one cause of downtime in mega-mixers is cement slurry penetrating the main bearings.
- The Component: Our HZS240 central mixers feature a sophisticated quadruple sealing system combined with an automated grease monitoring pump.
- The Benefit: This “multi-barrier” manufacturing approach creates an airtight seal that prevents high-pressure slurry from entering the drive system, guaranteeing years of zero-leakage operation even under the most intense duty cycles.
Rapid Access for Maintenance
Safety and speed go hand-in-hand during routine inspections.
- The Feature: We engineer the HZS240 mixing tower with extra-wide maintenance platforms, safety galvanized walkways, and large inspection hatches.
- The Benefit: Your maintenance crew can access the mixer, weighing scales, and air compressors safely and quickly. This reduces the time needed for routine concrete batch plant inspections, ensuring your facility is back in production within minutes, not hours.
Solutions For HZS240 Concrete Batching Plant
Resolution Of Customer Issues
The Customer Said:
The quality of high-strength concrete mixing is difficult to guarantee.
Short construction period and high production capacity requirements.
Strict environmental protection supervision.
The operation is complex and requires professional workers.
The CCS Solutions:
MAO6000/4000 forced mixing system ensures uniform mixing.
High-speed measurement + automatic control, ensuring continuous high production capacity.
Fully enclosed structure + multi-point dust removal system, meeting environmental protection standards.
Intelligent human-computer interaction interface, easy to operate, with remote diagnosis support.
Customized Solution Support
Modular Design
The layout can be customized according to the client’s site.
Multilingual System Interface
Provides customers with operational convenience.
Remote Control And Maintenance
It can be integrated with the IoT platform to enable remote monitoring and maintenance alerts.
Recommended Supporting Equipment
- Cement silo (100T/200T) + Gasification unit
- Sand and gravel separation and recycling system
- Cold water system (for hot regions)
- Concrete transportation and mixing vehicles, pump trucks, and other related equipment.
Application Scope
· Mega-Dams & Hydro-Power Projects
· International Airports & Seaport Terminals
· High-Speed Railway (HSR) Networks
· Nuclear Power & Specialized Energy Plants
· Centralized Mega-City RMC Hubs
Bridge
Highway
Electricity
Port
Airport
Water Conservancy
Precast Concrete Manufacturing
Commercial Ready-Mix Concrete Supply

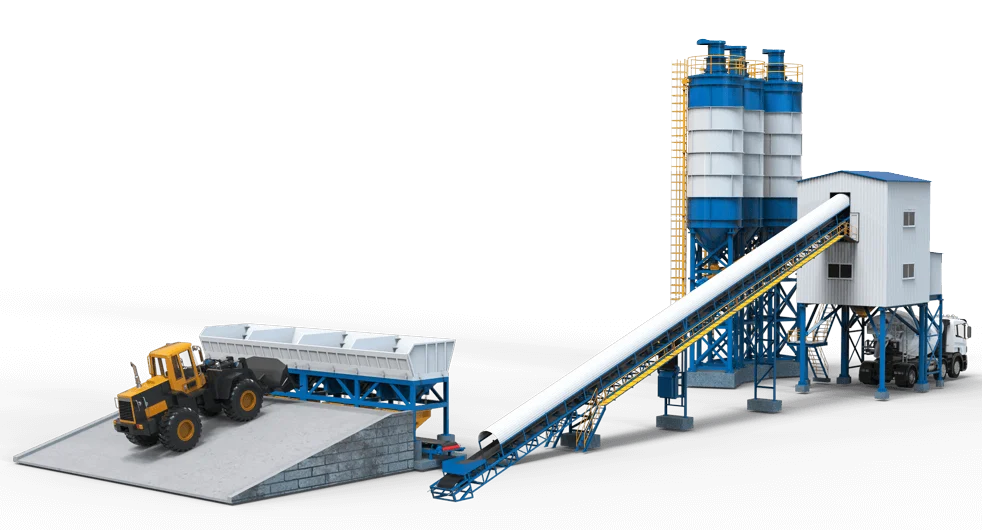

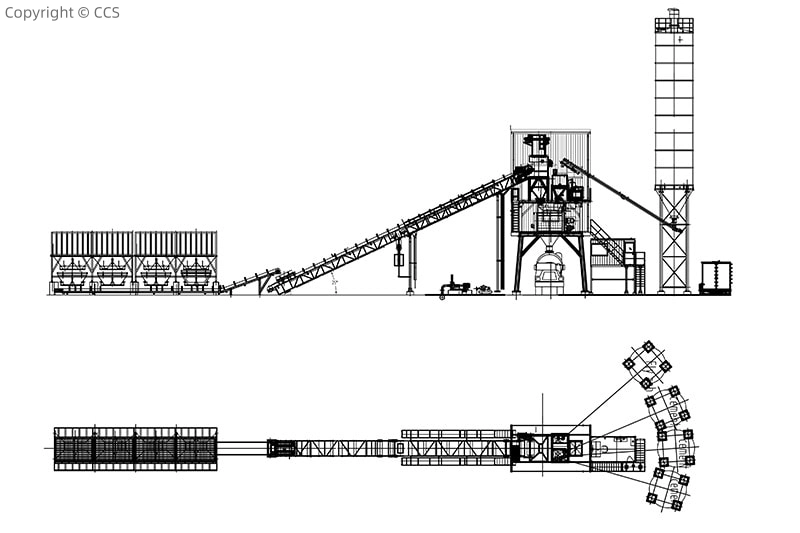

HZS240 Site Diagram & Civil Engineering Strategy
Designing the layout for a 240m³/h facility is an exercise in high-frequency logistics. An inefficient site design will cause truck congestion, slow down production, and ultimately reduce your ROI. At CCS, we provide more than just equipment; we offer a total site engineering solution.
1. Optimizing Traffic Flow for Mega-Volume
An HZS240 plant can load over 30 transit mixers per hour. Managing this traffic without bottlenecks is critical.
The Strategy: Our concrete batch plant diagram for the HZS240 typically follows a “Linear Drive-Through” model. We design separate entry and exit paths for the aggregate loaders and the delivery trucks, ensuring that raw material replenishment never crosses paths with concrete dispatch.
2. Managing Massive Footprint & Height Constraints
The Dimension: The physical concrete batch plant height of an HZS240 mixing tower can exceed 20 meters. This requires careful site planning regarding overhead power lines and local zoning laws.
The Footprint: With 4 to 6 large aggregate bins and up to 10 massive cement silos, the required site area often exceeds 5,000 square meters. Our engineering team provides custom 3D site visualizations to help you maximize every square meter of your land.
3. Reinforced Civil Foundation Requirements
The static and dynamic load of an HZS240 is immense.
The Engineering: Each HZS240 installation requires a specialized, heavy-duty reinforced concrete foundation. CCS provides detailed foundation blueprints and load-bearing data (kN/m²) to your local civil works team. We supervise the foundation pouring process to ensure zero structural settlement, protecting your investment against long-term misalignment or stress cracking.
HZS240 Investment Analysis: Strategic Capital Allocation for Mega-Projects
Investing in a 240m³/h batching plant is a high-stakes capital decision. Unlike smaller units, the HZS240 is a strategic asset designed to handle national infrastructure contracts worth millions. Understanding the factors that influence your hzs240 concrete plant price is essential for a precise business plan.
1. The Factors Influencing Your HZS240 Investment
The final investment for an HZS240 hub is dictated by three primary variables:
- Custom Modular Add-ons: Does your project require a specialized ice dosing system for dams? Do you need a fully enclosed cladded tower to meet urban noise regulations? These high-tech upgrades will adjust your initial capital expenditure (CAPEX).
- Storage & Logistics Scale: The number of 200T cement silos and the complexity of your aggregate supply chain (e.g., automated underground feeding) will impact the total facility cost.
- Regional Compliance Standards: Plants exported to highly regulated markets like Australia or the UK require specific CE/AS certifications and pulse-jet dust collectors, which influence the final quote.
2. The ROI of Precision: Why Cheap is Expensive in Mega-Projects
In a massive operation like the HZS240, even a 1% material waste can cost you tens of thousands of dollars every month.
The Math: By investing in CCS’s high-precision weighing logic (±1% accuracy), you minimize cement wastage during the massive daily throughput. Over a multi-year dam or highway project, these material savings alone can recover your entire equipment investment.
3. Request a Custom Feasibility Study
Because of the high degree of customization required for HZS240 plants, we recommend a professional consultation. CCS provides a detailed 3D site layout and a transparent, itemized project cost estimate within 24 hours.
HZS240 Maintenance Strategy: Ensuring 24/7 Operational Uptime
For a mega-plant like the HZS240 concrete mixing plant, every minute of downtime translates into massive financial loss and project delays. Maintaining such an industrial giant requires a proactive, data-driven maintenance strategy.
High-Frequency Lubrication & Shaft-End Integrity
The massive MAO6000/4000 mixer operates under extreme pressure.
The Protocol: Regularly monitor the automated centralized lubrication system. Ensure that high-quality grease is constantly maintaining a pressurized seal around the mixer shafts. This prevents cement slurry from penetrating the main bearings—the #1 cause of catastrophic failure in large plants.
Heavy-Duty Wear Part Management
Processing 150mm aggregates causes intense abrasion.
The Protocol: Do not wait for failure. Establish a scheduled inspection routine for the high-chromium alloy blades and liners. We recommend having a “Wear Management Log” to predict replacement cycles based on the abrasiveness of your local aggregates. CCS provides rapid delivery of genuine high-Cr parts globally to keep you prepared.
Hydraulic & Pneumatic System Health
The HZS240 utilizes powerful hydraulic or high-pressure pneumatic discharge gates. Regularly check for oil leaks and monitor air compressor pressure (0.7-0.8 MPa). Draining the water separators daily is critical to prevent valve corrosion and ensure instantaneous gate response.
Intelligent System Audits
Leverage our smart PLC software to perform weekly concrete batching computer system health checks. Identifying slow-acting load cells or inconsistent relay signals through software diagnostics allows you to perform “Predictive Maintenance” during scheduled project lulls, rather than reacting to a mid-pour breakdown.
Looking For The Right HZS240 Concrete Batching Plant Manufacturer?
Since our founding over three decades ago, CCS has established itself as a premier concrete plant manufacturer trusted by top-tier contractors and ready-mix producers worldwide. We don’t just assemble equipment; we engineer highly profitable, long-lasting concrete production hubs for landmark infrastructure, high-speed railways, and major dams.
While there are many concrete plant manufacturers in the global market, CCS stands out through our unwavering commitment to heavy-duty durability, fully customized turnkey solutions, and strict international certifications (CE, ISO, SGS, BV).
Today, our global footprint spans across diverse and extremely demanding environments. We proudly serve clients in advanced regions like Australia and South Korea, while powering massive urbanization and infrastructure projects throughout Southeast Asia, the Middle East, Central Asia, and Africa.
As a full-service organization, our commitment to your success extends far beyond the sale. We provide an end-to-end support system designed to maximize your Return on Investment (ROI).
Pre-Sales Engineering & Investment Consulting
Expert Installation & Operational Training
24/7 After-Sales Support & Maintenance
CCS Successful Cases
High-Volume Commercial RMC Supply
- Location: Philippines

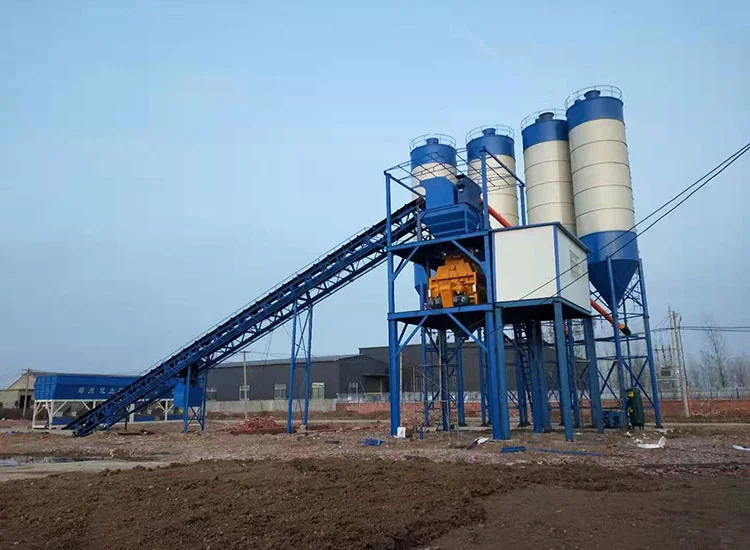

- Equipment: Dual HZS120 Stationary Batching Plants
- The Result: To meet the massive daily demand of a rapidly expanding urban center, the client required non-stop production. Our dual-plant setup with fully automated PLC synchronization delivers over 200m³/h, operating 24/7 with zero unscheduled downtime.
Extreme Climate Infrastructure Project
- Location: Uzbekistan

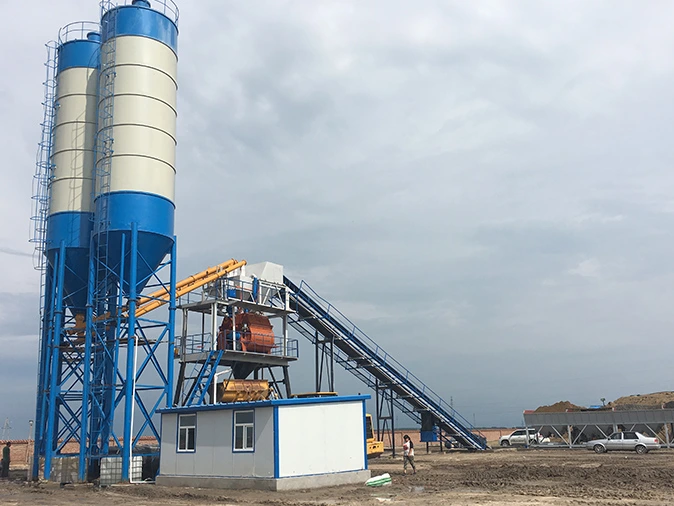

- Equipment: HZS90 with Winter Enclosure & Heating System
- The Result: Operating in sub-zero temperatures, the client needed a reliable solution to prevent aggregate freezing. CCS delivered a fully cladded plant with steam heating, allowing the highway construction project to continue seamlessly throughout the harsh winter.
High-Precision Dam Construction
- Location: Kenya

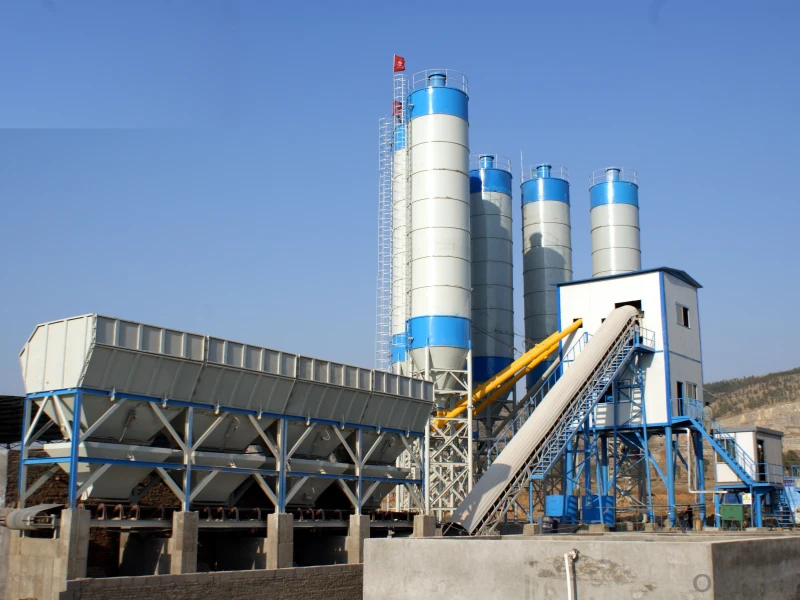

- Equipment: HZS180 with Ice & Microsilica Dosing
- The Result: Dam construction requires strict control over concrete hydration heat. We integrated a specialized flake ice weighing system and planetary mixers, ensuring the exact structural integrity required for this mega-project.
CCS Other Sizes Of Concrete Batching Plant For You
FAQ
Yes. We offer fully cladded environmental packages for the HZS60, including pulse-jet dust collectors on all silos and hoppers and sound-dampening panels for the mixing tower. This ensures your plant operates silently and cleanly, even in high-density city centers.
For tropical climates, we integrate water chillers or ice dosing systems to control concrete temperature. For freezing climates, we provide fully insulated sandwich panels and steam heating for the aggregate bins to ensure continuous production in sub-zero temperatures.
Yes, CCS is a real factory with 32+ years’ history. We stands out through unwavering commitment to heavy-duty durability, fully customized turnkey solutions, and strict international certifications (CE, ISO, SGS, BV). Today, our global footprint spans across diverse and extremely demanding environments.
Depending on the machine size, averagely 10 days.
We can design the plant according to your land layout and print your logo onto the machines.
Yes, installation manual will be provided and we can send our engineer to your site.
Generally, our quotes remain valid for one month. Prices are subject to adjustment based on the prevailing market conditions and raw material price volatility at the time of order confirmation.
Customize Your Solutions
When you invest hundreds of thousands of dollars into a concrete facility, you cannot afford to gamble on unreliable equipment. A premium, CE/ISO-certified CCS plant is the foundation of a sustainable, high-margin ready-mix business.
FEW TIPS:
· Please describe the capacity per hour of the batching plant (e.g., 25m³/h-240m³/h).
· Please describe the type of project (e.g., building house, factory, road, bridge, dam, airport, etc.).
· Please tell us the project location and estimated project start-up date.
· Please detail your specific requirements or expectations (e.g., project site, voltage, climate, etc.).
Tell us your need, our experts will reply you with in 12 hours.
